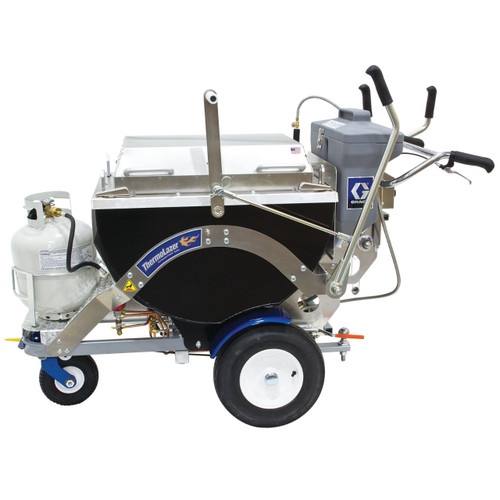

The Graco 24R763 ThermoLazer ProMelt Thermoplastic Striping System with 6-inch SmartDie II is a self-contained, high-production solution designed for contractors who need maximum line visibility and output without the need for a premelt kettle system.
Powered by Graco’s advanced ProMelt technology, this unit melts up to 300 lbs of thermoplastic material onboard in under 1.5 hours—eliminating additional equipment, reducing labor, and streamlining operations. The 6" SmartDie II configuration delivers wider, high-impact markings ideal for crosswalks, roadways, and high-traffic areas.
With a powerful 100,000 BTU heating system, QuadMelt chamber design, and precision SmartDie II system, the ProMelt ensures consistent material flow and professional-grade results. Combined with ergonomic handling and LineDriver compatibility, this system is built for contractors who demand efficiency, performance, and scalability.
- QuadMelt System
- Four chamber melting system provides more melting surface for higher production
- 100,000 BTU heating system melts material fast
- SmartDie II System
- Floats on the for a superior line
- No-tool change out design makes swapping dies easy
- Built-in adjustment for mil thickness
- Hardened steel for durability
- Bead Dispensing System
- Line width adjustments take seconds and require no tools
- Holds over 90 lbs of beads
- Optional Double Drop Conversion Kit available
- EasyGlide Wheel System
- Air-filled tires make pushing and pulling easy
- Fat Track Front Swivel Wheel
- Allows for easier turning when striping curves, arrows, and other hard-to-stripe jobs
- Ease-Z-Steer Handle Bar System
- Makes turning and handling smooth and easy
- Die Burner System
- Direct head keeps material flowing even in cooler conditions
- Compatible with LineDriver
- Add a LineDriver for unmatched performance
Machine Specifications
| Specification | Details |
| Brand | Graco |
| Model | ThermoLazer ProMelt |
| Part Number | 24H763 |
| Striping Type | Thermoplastic |
| Material Capacity | 300 lb (onboard melt) |
| Maximum Working Pressure | 250 PSI |
| Weight | 343 lbs |
Included Components
6" SmartDie II
ProMelt Onboard Melting System
4-Torch / Die Burner Heat System
Operational Details
UPC: 633955058828
Country of Origin: United States
Unit of Measure: Each
Recommended Applications
Crosswalk striping
Wide roadway markings
Parking lot striping
Municipal and DOT projects
High-visibility thermoplastic applications
