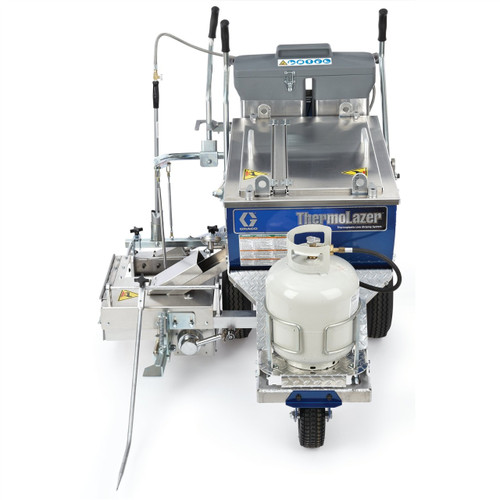

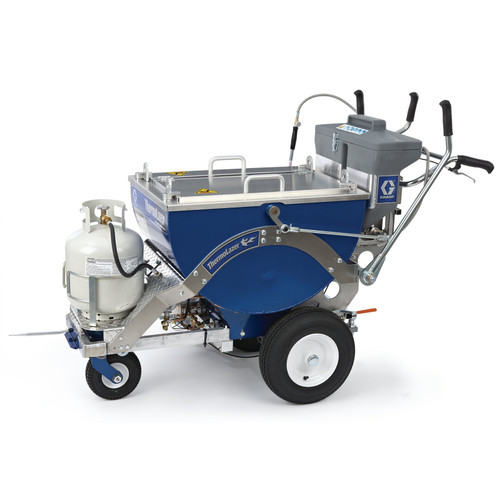

The Graco 258699 ThermoLazer 300TC Thermoplastic Striping System with 4-inch SmartDie II is a high-production handliner designed for contractors who need increased capacity, efficiency, and performance on thermoplastic striping jobs.
Featuring a larger 300 lb material kettle, the 300TC allows for longer striping runs with less downtime for refilling—making it ideal for medium to large projects. The SmartDie II system delivers superior line quality with precise control, while the EasyGlide Wheel Mount System ensures smooth maneuverability comparable to a LineLazer striper.
Built for productivity and ease of use, the ThermoLazer 300TC combines advanced heating, bead application, and handling systems to deliver consistent, professional results. Designed for use with premelt thermoplastic material, this unit is the go-to solution for contractors looking to scale beyond entry-level thermoplastic striping systems.
- EasyGlide Wheel Mount System
- Front mounted caster along with dual rear pneumatic air-filled tires makes handling safe and as easy to maneuver as a LineLazer striper
- Tri-Flame Die Heat System
- Reliable, safe system to keep die ready to use
- Bead Dispense System
- No-tool system allows fast and easy line width changes
- Split Bead Hopper System
- Split hopper holds over 90 lb of beads
- Simple conversion to double drop bead system with optional kit
- FatTrack Front Swivel Wheel
- Proven front caster wheel system makes turning fast and easy
- Maneuver curves better
- No need to "muscle" it while moving
- Optional LineDriver System
- Get higher productivity and straighter lines with less fatigue
- Move between jobs without having to push
- Patented Dual Pedal System—Multiple positions allow for simple forward and reverse
Machine Specifications
| Specification | Details |
| Brand | Graco |
| Model | ThermoLazer 300TC |
| Part Number | 258699 |
| Striping Type | Thermoplastic |
| Material Capacity | 300 lb |
| Maximum Working Pressure | 250 PSI |
| Weight | 295 lbs |
Included Components
4" SmartDie II
Split Bead Hopper System
Operational Details
UPC: 633955545465
Country of Origin: United States
Unit of Measure: Each
Recommended Applications
Parking lot striping
Roadway striping
Crosswalks and symbols
Municipal striping projects
Medium to large thermoplastic jobs
Download the Graco LineLazer Guide for Indoor and Outdoor Professional Line Striping (PDF)
This comprehensive Graco LineLazer Professional Airless Line Striping Systems Guide provides technical specifications and layout solutions for all environments, including high-traffic outdoor parking lots and airports, specialized indoor warehouse and factory flooring, and precision turf marking for athletic fields.
