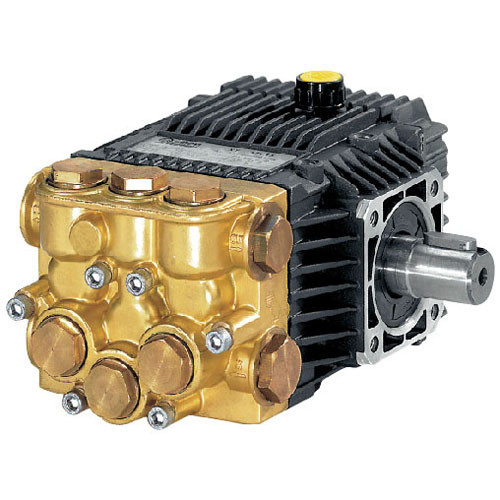

Annovi Reverberi AR XMA35G22N horizontal gas engine triplex plunger pump is rated up to 3.5 GPM at max 2500 PSI spins a ¾” solid shaft at 1750 RPM using a ½”F inlet and 3/8"F discharge thread. N version with a gas engine flange.
Features coming soon!
SPECIFICATIONS
| Max GPM | 3.5 |
| Max L/Min | 13.2 |
| Max PSI | 2500 |
| MaxBar | 170 |
| Power EBHP | 6 |
| Bore Dia mm | 15 |
| Stroke mm | 15.4 |
| Crankshaft ID Stamp | 1 |
| Inlet | 1/2" F |
| Outlet | 3/8" F |
| Max Temp | 140° F |
| Oil Capacity (oz) | 14.5 |
| Weight | 14 |
| RPM | 1750 |
| Shaft Size | 3/4" |
| Shaft Version | N |
| Shaft Type | Solid |
