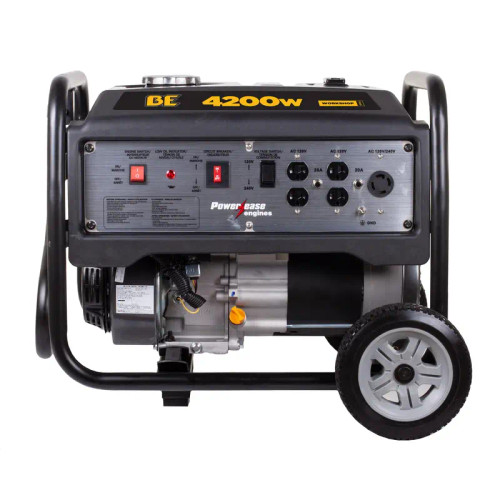

Portable generator that brings power to remote worksites and emergency situations.
Rugged and reliable engine with automatic low oil-shutdown that safeguards the engine.
Easy access outlets are protected by circuit breakers for safety.
Durable powder coated steel roll cage protects the generator and allows easy access for maintenance.
Includes heavy-duty flat free tires and folding handles to help with portability and storage.
Portable generator: Brings power to remote worksites and emergency situations.
Rugged and reliable engine: Automatic low oil-shutdown safeguards the engine.
Easy access outlets: Protected by circuit breakers for safety.
Durable steel roll cage: Powder-coated for protection and maintenance accessibility.
Heavy-duty flat-free tires: Complemented with folding handles for easy portability and storage.
Specifications
- AMP: 29
- Max Watts: 4,200
- Running Watts: 3,500
- Volts: 120/240
- Series: Workshop
- Engine: Powerease
- CC: 223
ENGINE
- MODEL: POWEREASE 223CC
- TYPE: AIR COOLED, 4-STROKE OHV
- DISPLACEMENT: 223CC
- DB RATING: 68dB @ 7M
- START TYPE: PULL START
- FUEL TYPE: 86 OCTANE, UP TO 10% ETHANOL
- FUEL TANK SIZE: 15L (3.9 GAL)
- APPROX RUN TIME: 7HR @ FULL LOAD
- OIL TYPE: SAE 10W30
- CERTIFICATIONS: CSA, EPA III AND CALI CARB
FRAME
- TYPE: POWDER COATED STEEL ROLL CAGE
- PORTABILITY: FOLDING HANDLES WITH WHEELS
- WHEELS: 8" FLAT FREE TIRES
ALTERNATOR
- MAX WATT: 4,200 W
- RUNNING WATT: 3,500 W
- MASTER CIRCUIT BREAKER: 29A 120V DOUBLE POLL , 14.5A 240V DOUBLE POLL
- VOLTAGES: 120V/240V
- HARMONIC DISTORTION: MAX 15%
- GROUNDING: NEUTRAL BONDED
- VOLTAGE SWITCH: 120 TO 240V
OUTLETS
- 4x 120V 20A HOUSEHOLD, NEMA 5-20R
- 1x 120V/240V 30A TWISTLOCK, NEMA L14-30R
