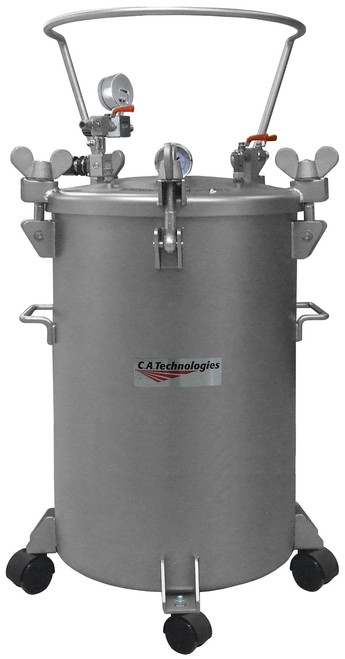

CA Technologies 51-551C Casting Pressure Pot | Summary
The CA Technologies 51-551C is a 10-gallon, non-ASME resin casting pressure pot designed specifically for mold casting and resin applications. This top-outlet pressure tank comes pre-configured with no pickup tube, making it ideal for pourable materials and casting resins.
Built from heavy-gauge steel, it’s equipped with a single air pressure regulator, safety relief valve, vent valve, and durable caster wheels for mobility. Rated to 80 PSI, this unit is a reliable choice for non-flammable resin applications.
CA Technologies 51-551C Resin Casting Pot | Features
-
10-gallon resin/mold casting tank with no internal pickup tube
-
Single air pressure regulator for simple, controlled operation
-
Caster wheels for easy positioning in workshop environments
-
Durable heavy steel construction with baked enamel finish
-
Flat-bottom tank ideal for stability in casting setups
-
Safety relief and vent valves included
-
Compliant with OSHA guidelines for non-ASME tanks at 15 PSI for flammable materials
CA Technologies 51-551C Resin Casting Pot | Specifications:
| Specification | Details |
| Manufacturer | CA Technologies |
| Part Number | 51-551C |
| Capacity | 10 Gallons |
| Pressure Rating | 80 PSI (Max), 15 PSI (Flammable Use) |
| Air Inlet/Outlet | 1/4" NPS (M) |
| Fluid Outlet | 3/8" NPS (M) |
