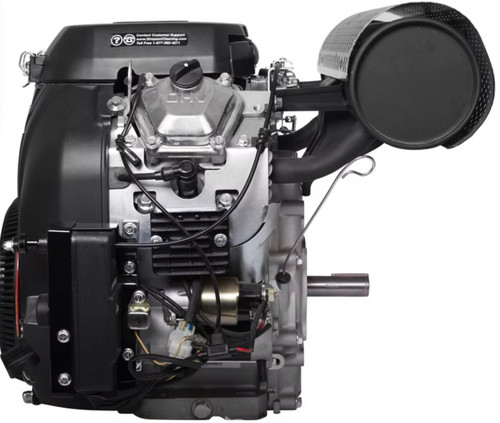

CRX750 V-Twin Horizontal Shaft Engine | Summary
The CRX 750 engine provides the power you need for those tough commercial/industrial applications. Like all of our V-Twin engines, this model features full pressure lubrication, oil cooler and filter, heavy-duty muffler, advanced air filtration system and a 20A alternator.
Common Engine Applications:
-
Commercial Lawn and garden equipment
-
Construction / Industrial equipment
-
Trailer Mount Pressure Washers
-
Agricultural equipment
-
Water pumps
-
Forestry equipment
CRX750 V-Twin Horizontal Shaft Engine | Features
-
Industrial tough mufflers and shields designed for improved sound quality and lower sound level
-
Commercial-style advanced element air filtration system helps maintain optimal power on dusty work sites
-
Cast iron cylinders decrease friction between mating parts as well as which helps keep the engine cool during extreme applications
-
Precision-machined, forged iron crankshaft designed for low vibration and toughness required for the most extreme duty cycles
-
Low oil auto-shutdown sensor prevents damage to the engine when oil volume is low
-
Oil filter and external oil cooler extends the life of the oil and prevents premature wear and tear on critical mechanical parts
CRX750 V-Twin Horizontal Shaft Engine | Specifications
| Model Number | CRX750 |
| Engine Type | Air-Cooled, V-Twin, OHV |
| Warranty | 3 Year Commercial |
| Compression Ratio | 8.5:1 |
| Net Power | 16.0 kW @ 3600 rpm |
| Net Torque | 47 Nm @ 3000 rpm |
| PTO Shaft Rotation | Counterclockwise |
| Alternator Output | 12V20A240W |
| Key Start/E-Start | Yes |
| Low Oil Shutdown | Standard |
| Oil Capacity | 1.48 qt |
| Fuel Tank Capacity | Fuel tank not included |
| Dimensions | 20" x 21" x 18.5" |
| Engine Dry Weight | 109 lbs |
