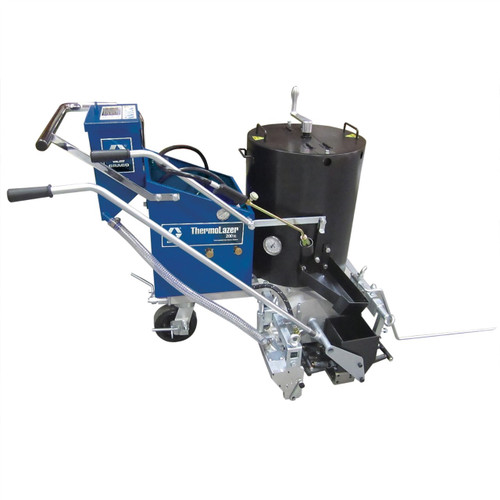

The Graco 17A344 ThermoLazer 200TC Thermoplastic Striping System with 4-4-4" FlexDie is a compact, high-efficiency solution designed for contractors who need to apply multiple thermoplastic lines in a single pass.
Built on the proven 200TC platform, this system delivers professional-grade performance for smaller jobs while increasing productivity through its multi-line die configuration. The 4-4-4" FlexDie setup allows for triple-line striping, making it ideal for applications such as crosswalks, parking lot markings, and specialty layouts requiring consistent spacing and alignment.
With a 200 lb material kettle, direct heat system, and precision-engineered FlexDie, the ThermoLazer 200TC ensures smooth material flow and consistent line quality. Designed for use with premelt kettle systems, this unit combines portability, efficiency, and precision—making it a powerful tool for contractors handling detailed or multi-line striping applications.
- 200 lb Material Kettle
- Drum-style kettle is easy to fill
- Corkscrew agitation aids in mixing material and improves melt times
- No-tool change out design lets you switch colors in the field
- Tri-Wheel System
- Rear swivel wheel and dual-fixed wheels allow for easy maneuvering
- FlexDie
- Delivers excellent line quality with deep-die, all steel construction and built-in adjustability
- Direct flames keep die ready
- Adjustable Front Pointer
- Easily adjust to match dies for following marks and creating straight lines
- Bead Dispenser
- 8.5 or 12.5 in dispenser with toolless adjustments for line width and drop rate
- Optional Double Drop Conversion Kit
Machine Specifications
| Specification | Details |
| Brand | Graco |
| Model | ThermoLazer 200TC |
| Part Number | 17A344 |
| Striping Type | Thermoplastic |
| Material Capacity | 200 lb |
| Maximum Working Pressure | 250 PSI |
| Bead System | Gravity Bead System |
| Weight | 260 lbs |
Included Components
4-4-4" FlexDie System
Bead Dispenser
Direct Heat System
Operational Details
UPC: 633955581319
Country of Origin: China
Unit of Measure: Each
Recommended Applications
Crosswalk striping
Parking lot multi-line layouts
Specialty markings and symbols
Municipal striping projects
High-efficiency repetitive layouts
