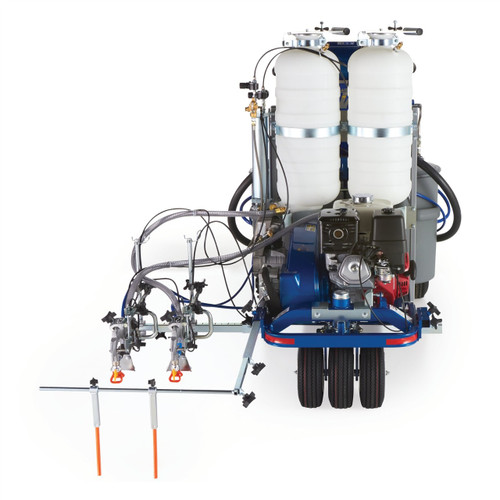

The Graco 17H473 LineLazer V 250DC HP Reflective Series is a self-propelled, dual-color airless line striper with integrated reflective bead capability, designed for high-production striping on demanding applications such as airports, highways, and municipal projects. This system enables contractors to apply two colors simultaneously or independently while also delivering consistent reflective bead application for enhanced visibility and durability.
Equipped with dual automatic paint guns and push-button striping, operators can efficiently produce precise lines, skip patterns, and dual-color markings with minimal effort. The pressurized EZ Bead System with dual 120 lb bead tanks (240 lb total capacity) ensures optimal bead flow and proper paint embedment for long-lasting reflective striping.
With dual 15-gallon paint hoppers, dual Endurance Chromex pumps, and dual high-efficiency hydraulic motors, the 250DC delivers uninterrupted, no-stall performance and precise material control. Powered by a Honda GX390 engine and featuring a self-propelled drive system, this machine maximizes productivity while reducing operator fatigue—making it ideal for complex, high-volume striping projects.
- Pressurized EZ Bead System
- Superior Bead Application Performance
- Ensures proper bead flow and paint penetration
- Dual bead tanks hold up to 120 lbs each
- Dual High-Efficiency Hydraulic Motors
- Uninterrupted Performance
- No-Stall design
- Dual Endurance Chromex Pumps
- Precise Material Flow
- Consistency with a wide range of striping materials
- Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system

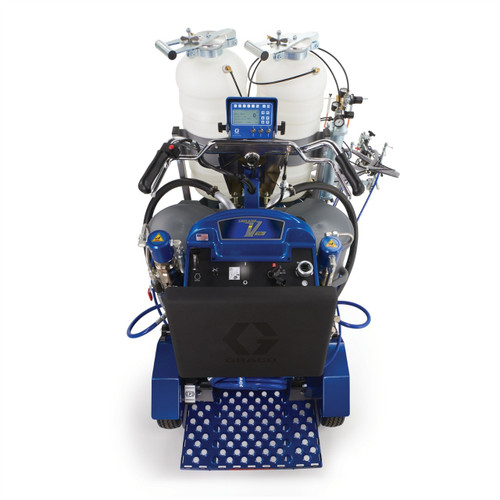

- Remote Mount Control Box
- Striping Information At-A-Glance
- Simple to use and easy to see in all conditions

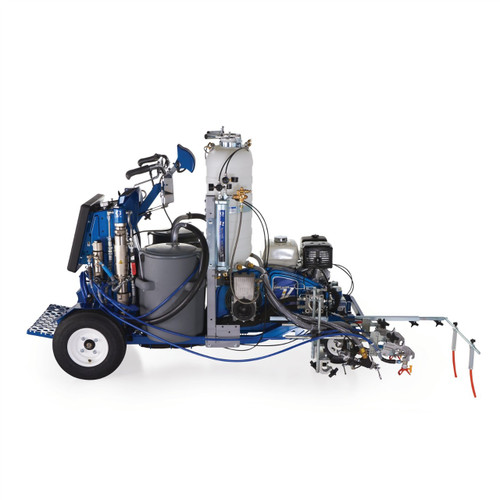

- Dual 15-Gallon Paint Hoppers
- Less Refilling
- Simultaneously spray two colors and refill less often
- Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Electric Start
- Fast starting
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- Additional Features
- Front or Rear Gun Mount
- Self-Centering Front Wheel
- Easy Handlebar Adjustment
- High-Capacity Cooling System
- Easy Out Pump Filter
Machine Specifications
| Specification | Details |
| Brand | Graco |
| Model | LineLazer V 250DC HP Reflective (Self-Propelled) |
| Part Number | 17H473 |
| Power Source | Gas (Hydraulic Drive) |
| Engine Power | 13 HP |
| Engine | Honda GX390 |
| Maximum Operating Speed | 10 mph |
| Maximum Working Pressure | 3300 PSI |
| Maximum Flow Rate | 9.5 L/Min |
| Maximum Tip Size | 0.039 in |
| Number of Colors | 2 |
| Number of Pumps | 2 |
| Number of Hoppers | 2 |
| Hopper Capacity | 30 Gallons (2 x 15-gallon hoppers) |
| Bead System | Pressurized EZ Bead System |
| Bead Tank Capacity | 240 lb total (2 x 120 lb tanks) |
| Number of Guns | 2 (Automatic) |
| Weight | 996 lbs |
Operational Details
UPC: 755652320180
Country of Origin: United States
Unit of Measure: Each
Included Components
Pressurized Bead System (2 Tanks)
Flex Plus Spray Guns (2)
RAC 5 321 Spray Tips (2)
RAC 5 425 Spray Tips (2)
RAC 5 627 Spray Tips (2)
RAC 5 Tip Guards (2)
3/8" x 12 ft BlueMax II Hoses (2)
3/8" x 3 ft Whip Hoses (2)
TSL (4 oz)
Recommended Applications
Airport striping with reflective markings
Highway and roadway striping
Municipal and DOT projects
Dual-color reflective striping
Parking lots with multi-color layouts
High-production striping jobs
Long-distance striping projects
