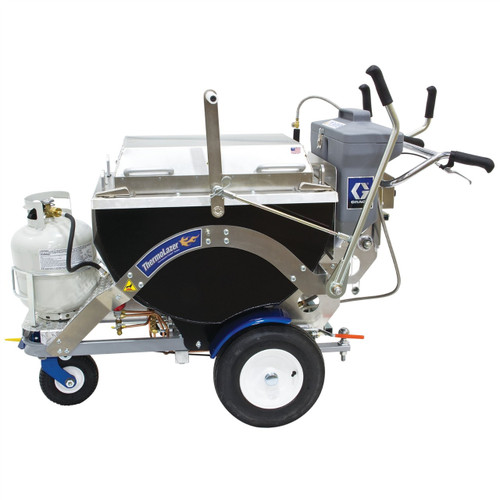

The Graco 24R765 ThermoLazer ProMelt Thermoplastic Striping System with 8-inch SmartDie II is a self-contained, high-production solution built for contractors who need maximum line width and visibility without the need for a premelt kettle system.
Powered by Graco’s advanced ProMelt onboard melting technology, this unit can melt up to 300 lbs of thermoplastic material in under an hour—eliminating additional equipment, reducing labor, and streamlining operations. The 8" SmartDie II configuration delivers extra-wide, high-impact markings ideal for crosswalks, stop bars, and other high-visibility applications.
With a powerful 100,000 BTU heating system, 4-chamber melting design, and precision SmartDie II system, the ProMelt ensures consistent material flow and professional-grade results. Combined with ergonomic handling and LineDriver compatibility, this system is designed for contractors who demand maximum productivity, efficiency, and performance.
- Ease-Z-Steer Handle Bar System
- Makes turning and handling as simple as a LineLazer System
- Adjustable handle bar for users of all sizes
- ProMelt Technology
- 4 Chamber Melting System—More surface area to melt thermoplastic fast
- 100,000 BTUs—Faster melt time means more jobs get done everyday
- SmartDie II System
- Fast change-out system—Hardened steel dies with mil thickness adjustment system built in
- Use with or without heat—Allows you to optimize your striping in all weather conditions
- "Floats" with the surface—Puts the thermoplastic where you want it for superior line quality
- External Heat System—4-torch die heat system keeps it hot
- Ergonomic Design
- Easier to use and almost effortless to push/pull, just like the proven LineLazer design
- Optional LineDriver System - LineDriver and LineDriver HD Systems adaptable for the ThermoLazer 300 tc System
- Get higher productivity and straighter lines with less fatigue
- Move between jobs without having to push
- Dual Pedal System—Multiple positions allow for simple forward and reverse
Machine Specifications
| Specification | Details |
| Brand | Graco |
| Model | ThermoLazer ProMelt |
| Part Number | 24H765 |
| Striping Type | Thermoplastic |
| Material Capacity | 300 lb (onboard melt) |
| Maximum Working Pressure | 250 PSI |
| Weight | 343 lbs |
Included Components
8" SmartDie II
ProMelt Onboard Melting System
4-Torch Heat System
Operational Details
UPC: 633955059108
Country of Origin: United States
Unit of Measure: Each
Recommended Applications
Crosswalk striping
Stop bars and wide markings
Roadway striping
Parking lot striping
High-visibility thermoplastic applications
