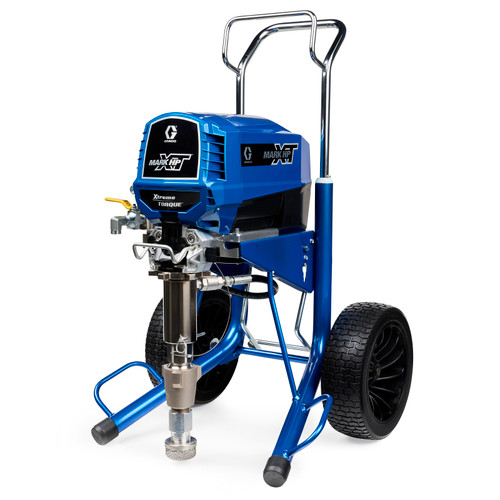

The Graco Mark HP XT Electric Airless Sprayer is built for contractors who need gas-level performance—without gas. Delivering up to 6,750 PSI from a standard outlet, this unit is designed for spraying the toughest coatings including epoxy, silicone, vapor barriers, and 100% solids materials.
Powered by XT Motor technology with Amplifi™, this sprayer pulls more usable power from standard 120V or 230V outlets—giving you high-output performance without fuel, engine maintenance, or jobsite limitations.
This is where it separates itself: you get true high-pressure capability (6,750 PSI) in a quieter, lighter, and more flexible electric platform—ideal for indoor work, extended hours, and jobs where gas isn’t practical.
The Endurance™ pump with ProConnect™ keeps crews spraying by allowing fast pump swaps, while TurboClean™ and WatchDog™ protection reduce downtime and protect your investment on demanding jobs.
If you’re spraying heavy coatings and want power, consistency, and less hassle—this is one of the most capable electric sprayers on the market.
Built for Professional Use
- Roofing coatings (silicone, elastomeric)
- Epoxy and 100% solids coatings
- Vapor barriers and waterproofing
- Intumescent and protective coatings
- Large commercial and industrial jobs
Is an electric sprayer as powerful as gas?
Yes. The Mark HP XT delivers up to 6,750 PSI, matching or exceeding many gas-powered units while running on standard electric power.
What materials can this sprayer handle?
It’s built for heavy coatings including epoxy, silicone, vapor barriers, intumescent coatings, and 100% solids materials.
Why choose electric over gas?
Electric sprayers eliminate fuel, reduce maintenance costs, run quieter, and allow indoor or restricted jobsite use.
XT Motor with Amplifi™ Technology:
Delivers up to 50% more usable power from the same outlet for true high-performance spraying.
6,750 PSI High-Pressure Output:
Built to atomize heavy coatings that standard electric sprayers can’t handle.
Dual Voltage Flexibility (120V / 230V):
Run from standard outlets—no special power setup required.
Endurance™ Pump with ProConnect™:
Fast pump replacement keeps crews working and reduces downtime.
Built for Heavy Coatings:
Handles epoxy, silicone, vapor barriers, and 100% solids materials with ease.
TurboClean™ System:
Flushes faster with less fluid—saving time between jobs.
WatchDog™ Protection:
Automatically shuts down the pump to prevent damage during operation.
Quiet Electric Operation:
Ideal for indoor jobs, occupied buildings, and extended work hours.
Lighter Than Gas Units:
Up to 25% lighter for easier transport and jobsite mobility.
| Specifications | Details |
| Brand | Graco |
| Part Number | 18H410 |
| Model | Mark HP XT |
| Product Type | Electric Airless Sprayer |
| Max Pressure | 6,750 PSI |
| Max Flow Rate | 1.5 GPM (5.7 L/min) |
| Max Tip Size | .041" |
| Voltage | 120V / 230V Flex Voltage |
| Frame | Hi-Boy |
| Sound Level | 79 dB |
| Applications | Epoxy, Silicone, Vapor Barriers, Intumescent, Protective Coatings |
| Weight | 161 lbs |
Resources Coming Soon.
