The Graco Mark XV XT HD 3-in-1 Electric Airless Sprayer is built for contractors who need maximum flow, high production speed, and the ability to run multiple guns on demanding jobs. Designed for texture, drywall mud, primers, and heavy coatings, this unit delivers serious output while running on standard power.
With up to 87% more flow than the Mark V XT, this sprayer is built for high-volume applications where speed equals profit—allowing crews to finish more square footage per day and take on more jobs per month.

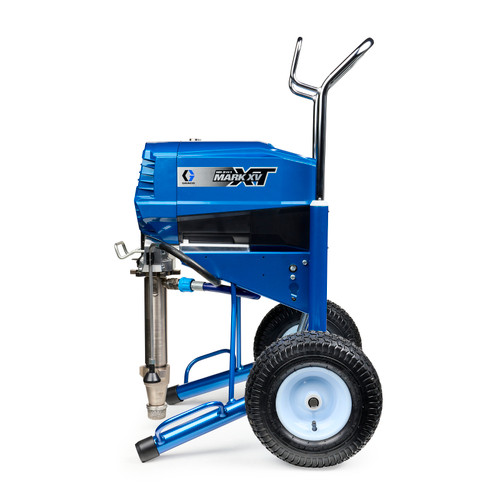

Powered by XT Motor technology with Amplifi™, the Mark XV XT delivers gas-level performance from standard 120V or 230V outlets, eliminating the need for fuel while still providing the power needed for large-scale spraying.

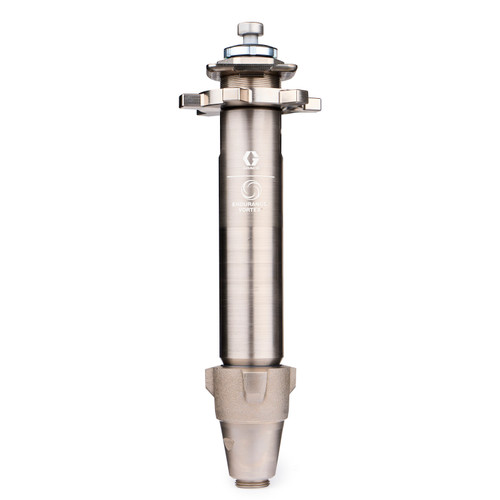

This unit is equipped with the Endurance Vortex Pump with ProConnect, built with oversized passages to handle heavy materials like drywall mud and texture while minimizing downtime with fast pump swaps.
If you're running high-production jobs, spraying texture, or need multi-gun capability—this is built to keep crews moving and maximize output.
Built for Professional Use
- Drywall mud and texture spraying
- High-volume paint and primer applications
- Multi-gun production spraying
- Large residential and commercial projects
- Contractors focused on speed and output
What is the Mark XV XT best used for?
The Mark XV XT is built for high-volume spraying, especially drywall mud, texture, primers, and large-scale paint applications.
Can this sprayer run multiple guns?
Yes. Its high flow output allows for multi-gun operation, increasing productivity on large jobs.
What’s the difference between Mark XV and Mark HP XT?
The Mark XV is focused on high flow and production speed, while the Mark HP XT is built for extreme pressure and heavy coatings like epoxy and silicone.
High-Flow Output (Up to 87% More):
Designed for maximum production speed and large job efficiency.
Multi-Gun Capability:
Run multiple spray guns to increase productivity on big projects.
XT Motor with Amplifi™ Technology:
Delivers up to 50% more usable power from standard outlets.
3-in-1 Versatility:
Sprays texture, drywall mud, paint, primers, and heavy coatings.
Endurance Vortex Pump with ProConnect:
Handles thick materials and allows fast pump swaps to reduce downtime.
Dual Voltage Flexibility (120V / 230V):
Run from standard power sources without special setup.
Quiet Electric Operation:
Ideal for indoor work and noise-sensitive environments.
Lightweight Compared to Gas:
Easier to move and position on the job site.
| Specifications | Details |
| Brand | Graco |
| Part Number | 18H400 |
| Model | Mark XV XT |
| Product Type | Electric Airless Sprayer |
| Configuration | Hi-Boy |
| Max Pressure | 3,300 PSI |
| Max Flow Rate | 2.8 GPM (10.6 L/min) |
| Max Tip Size | .053" |
| Voltage | 120V / 230V Flex Voltage |
| Sound Level | 79 dB |
| Applications | Texture, Drywall Mud, Paint, Primers, Heavy Coatings |
| Weight | 143 lbs |
