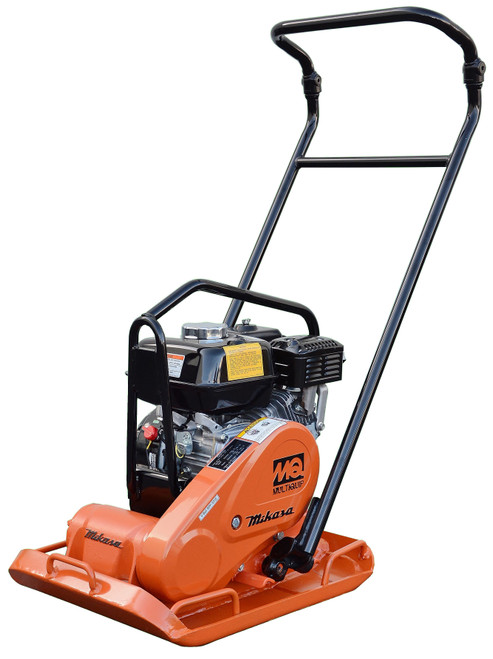

Recognized as the industry standard for compacting granular soils and asphalt.
- Reliable engine with Honda GX160 offering easy start-up and low oil shutdown for durability.
- Cyclonic pre-cleaner captures most airborne contaminants for engine protection and extended service life.
- Anti-vibration handle dramatically reduces operator fatigue and increases productivity.
- Solid, high-strenght steel base plate for durability.
- Tubular steel roll bar protects engine components and provides central lifting point.
- Sealed belt cover keeps dirt and rocks out extending belt life.
- Open base plate design makes for easier removal of dirt and rock build-up.
- Cog-tooth belt drive enables longer life compared to conventional V-belts.
- Front mounted exciter assembly allows for easy service access.
- Optional, tool-free removable water tank to facilitate refilling of 11.6 quart resevoir.
Centrifugal Force | 3080 lbf | 13.7 kN |
Exciter Speed | 5600 VPM | |
Plate Size | 17.7 x 22.4 in 450 x 570 mm |
|
Max Forward Speed Per Min. |
82 ft | 25 m |
Fuel Consumption Per Hour |
0.31 gal | 1.17 L |
Overall Length | 36 in | 914 mm |
Overall Width | 17.7 in | 450 mm |
Overall Height | 39.5 in | 1003 mm |
Shipping Dimensions | 33.5 x 18.5 x 27 in 851 x 470 x 686 mm |
|
Operating Weight | 175 lb | 79 kg |
Shipping Weight | 200 lb | 91 kg |
