The Graco 17H469 LineLazer V 250SPS HP Reflective Series is the most advanced and highest-capacity line striper in the LineLazer lineup, built for contractors who require maximum productivity, full automation, and extended reflective striping capability. Designed for large-scale, continuous-duty jobs, this self-propelled unit combines hydraulic power, automatic striping, and dual bead tank capacity to deliver unmatched efficiency on the most demanding projects.
Equipped with dual automatic guns and push-button striping, operators can produce precise lines and skip patterns with minimal effort. The pressurized EZ Bead System with dual 120 lb bead tanks (240 lb total capacity) ensures consistent bead flow and optimal paint penetration for high-visibility, long-lasting reflective markings—ideal for highways, airports, and municipal work.
Powered by a Honda GX390 engine and supported by a high-efficiency hydraulic system, the 250SPS HP Reflective provides no-stall performance, smoother operation, and extended equipment life. The self-propelled drive system eliminates the need to push the machine, reducing fatigue while maintaining consistent speed and straight lines, making it the ultimate solution for high-production striping contractors.
- Pressurized EZ Bead System
- Superior Bead Application Performance
- Ensures proper bead flow and paint penetration
- Dual bead tanks hold up to 120 lbs each
- Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system

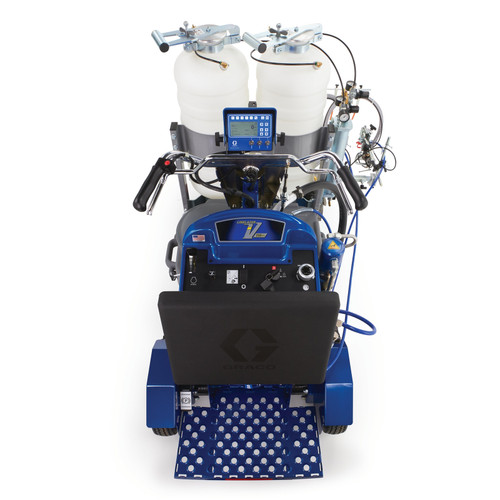

- Remote Mount Control Box
- Striping Information At-A-Glance
- Simple to use and easy to see in all conditions

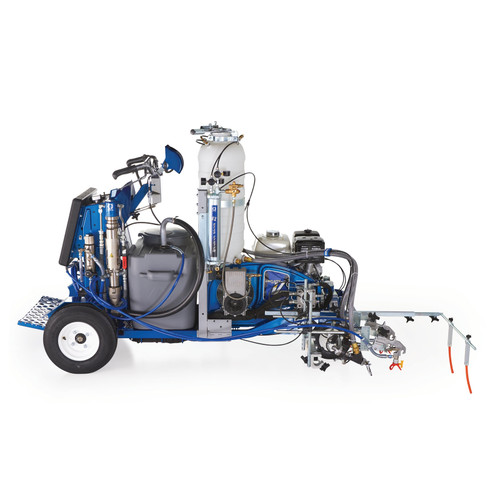

- 25-Gallon Paint Hopper
- Less Refilling
- Extended striping time with large capacity hopper
- Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Electric Start
- Fast starting
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- Front or Rear Gun Mount
- Straighter long lines
- Use up to six guns
- Self-Centering Front Wheel
- Simple operation
- Foam-filled, three-wheel design for stability
- Additional Features
- Easy Handlebar Adjustment
- Endurance Chromex Pump
- High-Efficiency Hydraulic Motor
- High-Capacity Cooling System
- Easy Out Pump Filter
Machine Specifications
| Specification | Details |
| Brand | Graco |
| Model | LineLazer V 250SPS HP Reflective (Self-Propelled) |
| Part Number | 17H469 |
| Power Source | Gas (Hydraulic Drive) |
| Engine Power | 13 HP |
| Engine | Honda GX390 |
| Maximum Operating Speed | 10 mph |
| Maximum Working Pressure | 3300 PSI |
| Maximum Flow Rate | 9.5 L/Min |
| Maximum Tip Size | 0.039 in |
| Number of Colors | 1 |
| Number of Pumps | 1 |
| Number of Hoppers | 1 |
| Hopper Capacity | 25 Gallons |
| Bead System | Pressurized EZ Bead System |
| Bead Tank Capacity | 240 lb (2 x 120lb tanks) |
| Number of Guns | 2 (Automatic) |
| Weight | 776 lbs |
Operational Details
UPC: 755652320159
Country of Origin: United States
Unit of Measure: Each
Included Components
Pressurized Bead System (1 Bead Tank)
Flex Plus Spray Guns (2)
RAC 5 321 Spray Tips (2)
RAC 5 425 Spray Tips (2)
RAC 5 627 Spray Tips (2)
RAC 5 Tip Guards (2)
3/8" x 12 ft BlueMax II Hose
3/8" x 3 ft Whip Hose
TSL (4 oz)
Included Components
Pressurized Bead System (2 Tanks)
Flex Plus Spray Guns (2)
RAC 5 321 Spray Tips (2)
RAC 5 425 Spray Tips (2)
RAC 5 627 Spray Tips (2)
RAC 5 Tip Guards (2)
3/8" x 12 ft BlueMax II Hose
3/8" x 3 ft Whip Hose
TSL (4 oz)
Recommended Applications
Highway and roadway striping with reflective beads
Airport and runway striping
Municipal and DOT striping projects
Large parking lot striping
High-production, continuous-duty striping jobs
Long-distance reflective line striping
