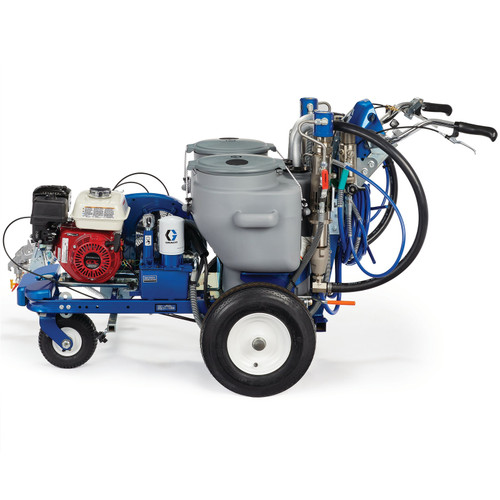

The Graco 17Y231 LineLazer V 200DC Standard Series is a dual-color airless line striper designed for contractors who need efficient, cost-effective striping without switching between machines. Featuring two independent paint systems, this unit allows operators to apply two colors—such as yellow and white—without downtime, maximizing productivity on multi-color striping jobs.

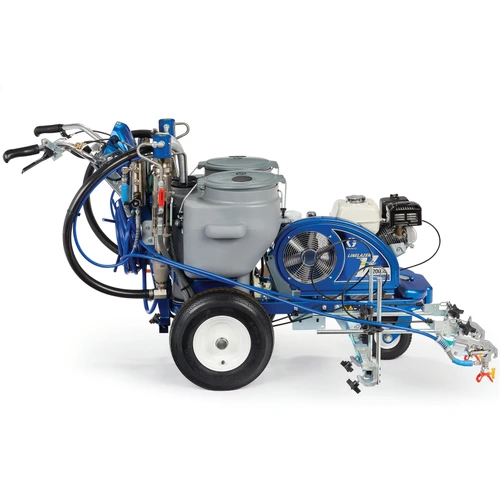

Built with dual high-efficiency hydraulic motors and pumps, the 200DC delivers no-stall performance and consistent output for demanding striping applications. Large dual 10-gallon hoppers reduce refilling frequency, allowing contractors to complete jobs faster and with fewer interruptions.
With SmartControl, LiveLook display, and the J-Log system, operators can maintain precise pressure, monitor performance, and capture job data for reporting and proof-of-work. Ideal for contractors handling multi-color parking lots, roadways, and commercial striping projects, the 200DC provides a powerful and practical solution for high-efficiency striping operations.
- Dual Color Capable
- Two Units in One
- No need for separate “yellow” and “white” machines
- Large, Dual 10-Gallon Hopper
- Less refilling
- Dual High-Efficiency Hydraulic Motors
- Uninterrupted Performance
- No-Stall design
- LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- Honda GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- DualComfort Handle Bar System
- Easy Handlebar Adjustment
- Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
- Additional Features
- High-Capacity Cooling System
- QuikSelect Gun Selector
- Easy Out Pump Filter
Machine Specifications
| Specification | Details |
| Brand | Graco |
| Model | LineLazer V 200DC Standard (Dual Color) |
| Part Number | 17H465 |
| Power Source | Gas (Hydraulic Drive) |
| Engine Power | 6.5 HP |
| Engine | Honda GX200 |
| Maximum Working Pressure | 3300 PSI |
| Maximum Flow Rate | 8.14 L/Min |
| Maximum Tip Size | 0.033 in |
| Number of Colors | 2 |
| Number of Pumps | 2 |
| Number of Hoppers | 2 |
| Hopper Capacity | 10 Gallons (each) |
| Number of Guns | 2 (Manual) |
| Weight | 537 lbs |
Operational Details
UPC: 755652827276
Country of Origin: United States
Unit of Measure: Each
Included Components
Flex Plus Spray Guns (2)
RAC 5 319 Spray Tips (2)
RAC 5 421 Spray Tips (2)
RAC 5 Tip Guards (2)
3/8" x 12 ft BlueMax II Hoses (2)
3/8" x 3 ft Whip Hoses (2)
TSL (4 oz)
Recommended Applications
Two-color parking lot striping
Roadway striping with multiple colors
Municipal striping projects
Commercial striping applications
High-efficiency re-striping jobs
Graco Rebate Offer
When you purchase through Spraywell, you are eligible to receive:
- 7 FREE RAC 5 Line Striping Tips
- Graco Endurace Advantage Program
How to Claim Your Free Goods:
This is an online rebate fulfilled by Graco after your order is delivered.
- Wait for your sprayer to arrive (you will need the Serial Number).
- Visit the Graco Redemption Center.
- Upload a copy of your receipt and use Promo Code: NAT26 & EA26
*Fulfillment handled by Graco. Valid on purchases through Dec 31, 2026.
Download the Graco LineLazer Guide for Indoor and Outdoor Professional Line Striping (PDF)
This comprehensive Graco LineLazer Professional Airless Line Striping Systems Guide provides technical specifications and layout solutions for all environments, including high-traffic outdoor parking lots and airports, specialized indoor warehouse and factory flooring, and precision turf marking for athletic fields.
