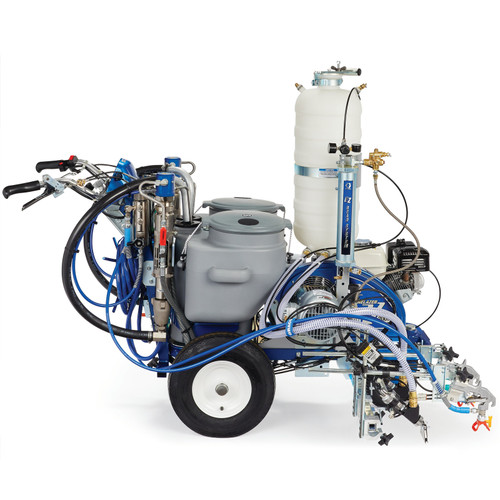

The Graco 17Y270 LineLazer V 200DC HP Reflective Series is a high-performance dual-color airless line striper designed for contractors who need maximum efficiency, automation, and reflective bead capability in one machine. With dual automatic guns and two independent paint systems, this unit allows operators to stripe two colors—such as yellow and white—without switching machines, significantly reducing downtime and increasing productivity.
Equipped with a pressurized EZ Bead System and a 120 lb bead tank, this model delivers consistent bead flow and proper paint penetration for highly visible, durable reflective markings. Combined with Auto-Layout II, SmartControl, and push-button striping, operators can achieve precise layouts and automated line production with minimal effort.
Powered by a Honda GX200 engine and dual hydraulic systems, the 200DC HP Reflective provides no-stall performance, consistent output, and extended runtime. Ideal for parking lots, municipal work, and roadway striping requiring both multi-color and reflective capability, this unit delivers unmatched versatility and productivity.
- Pressurized EZ Bead System
- Superior bead application performance
- Ensures proper bead flow and paint penetration
- Hose clogging eliminated — desiccant air filter removes moisture
- Large volume bead tank holds up to 120lbs
- Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
- Auto-Layout II
- Simplify Parking Lot Layout
- SmartControl measures while you walk and puts down pre-marks
- No need for measuring tape, string lines or aerosol cans
- Cuts your layout time in half

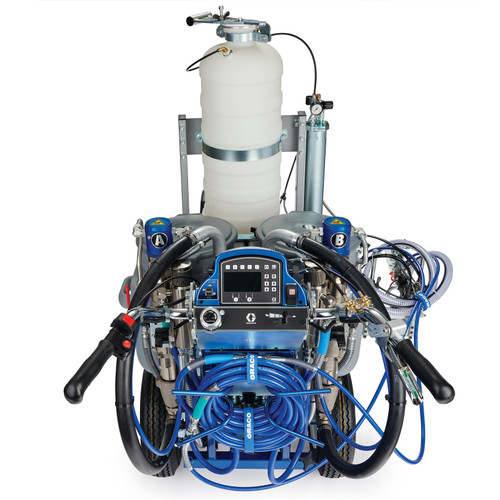

- LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- J-Log System with USB Download
- Valuable Job Information
- Proof of job = More striping opportunities.
- USB download capability allows you to capture and save all job data
- Dual Color Capable
- Two Units in One
- No need for separate “yellow” and “white” machines

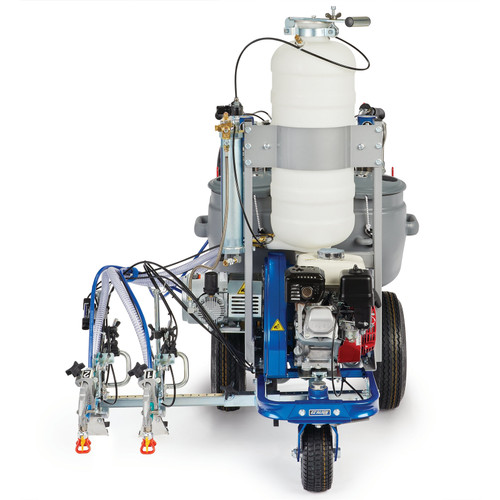

- Large, Dual 10-Gallon Hoppers
- Less Refilling
- Dual High-Efficiency Hydraulic Motors
- Uninterrupted Performance
- Proven no-stall design
- Honda GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Additional Features
- EasyMark Gun Adjustment System
- EZ Align Wheel System
- DualComfort Handlebar System
- Endurance Chromex Pump
- High-Capacity Cooling System
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
Machine Specifications
| Specification | Details |
| Brand | Graco |
| Model | LineLazer V 200DC HP Refflective (Dual Color) |
| Part Number | 17Y270 |
| Power Source | Gas (Hydraulic Drive) |
| Engine Power | 6.5 HP |
| Engine | Honda GX200 |
| Maximum Working Pressure | 3300 PSI |
| Maximum Flow Rate | 8.14 L/Min |
| Maximum Tip Size | 0.047 in |
| Number of Colors | 2 |
| Number of Pumps | 2 |
| Number of Hoppers | 2 |
| Hopper Capacity | 10 Gallons (each) |
| Number of Guns | 2 (Automatic) |
| Bead System | Pressurized EZ Bead System |
| Bead Tank Capcity | 120 lb |
| Weight | 396 lbs |
Operational Details
UPC: 755652850663
Country of Origin: United States
Unit of Measure: Each
Included Components
Pressurized EZ Bead System
LazerGuide 1700 Start/Stop Laser
Flex Plus Spray Guns (2)
RAC 5 319 Spray Tips (2)
RAC 5 421 Spray Tips (2)
RAC 5 Tip Guards (2)
3/8" x 12 ft BlueMax II Hoses (2)
3/8" x 3 ft Whip Hoses (2)
TSL (4 oz)
Recommended Applications
Dual-color reflective parking lot striping
Roadway striping with reflective beads
Municipal striping projects
Commercial striping applications
High-visibility, multi-color striping jobs
Graco Rebate Offer
When you purchase through Spraywell, you are eligible to receive:
- 7 FREE RAC 5 Line Striping Tips
- Graco Endurace Advantage Program
How to Claim Your Free Goods:
This is an online rebate fulfilled by Graco after your order is delivered.
- Wait for your sprayer to arrive (you will need the Serial Number).
- Visit the Graco Redemption Center.
- Upload a copy of your receipt and use Promo Code: NAT26 & EA26
*Fulfillment handled by Graco. Valid on purchases through Dec 31, 2026.
Download the Graco LineLazer Guide for Indoor and Outdoor Professional Line Striping (PDF)
This comprehensive Graco LineLazer Professional Airless Line Striping Systems Guide provides technical specifications and layout solutions for all environments, including high-traffic outdoor parking lots and airports, specialized indoor warehouse and factory flooring, and precision turf marking for athletic fields.
