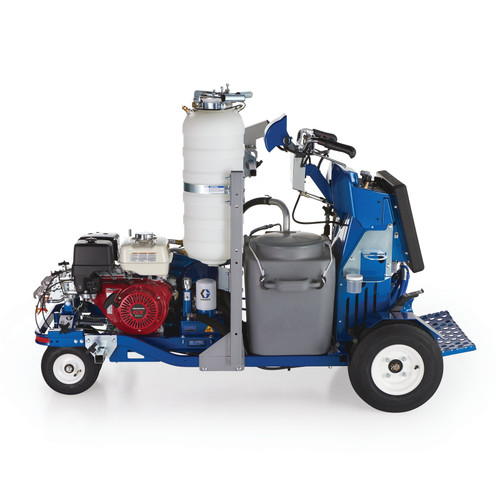

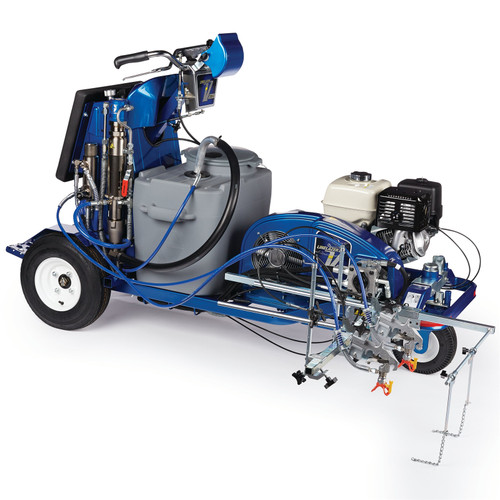

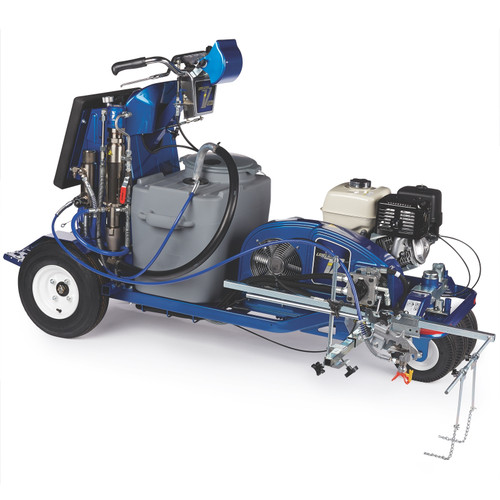

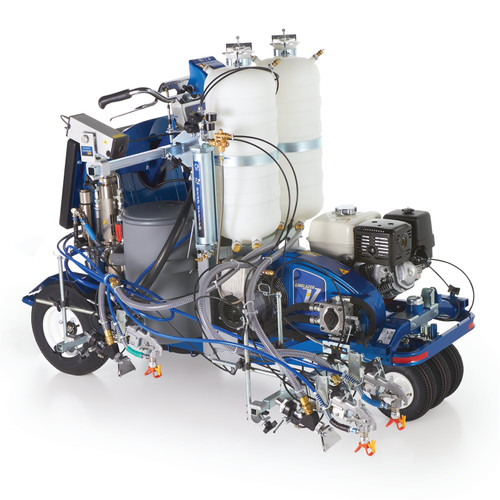

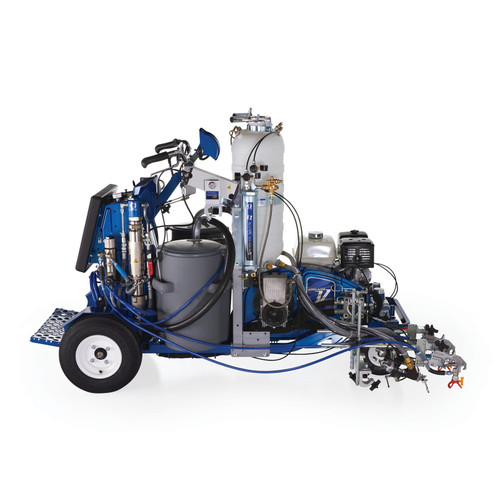

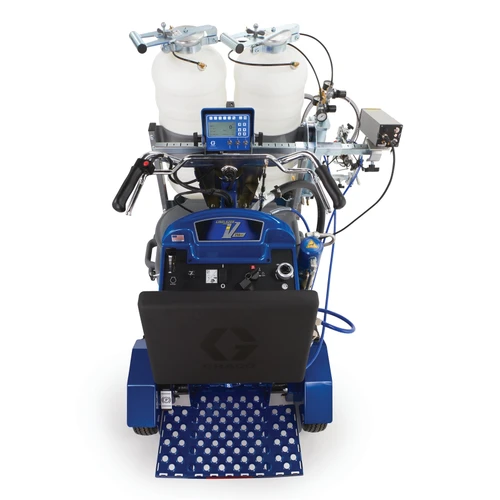

The Graco 25D340 LineLazer V 250SPS HP Reflective Series is the most advanced and highest-capacity line striper in the LineLazer lineup, combining self-propelled operation, dual automatic striping, maximum bead capacity, and laser-guided precision into one powerful system. Built for contractors handling the most demanding striping jobs, this unit is ideal for highways, airports, municipalities, and large-scale commercial projects.
Featuring dual automatic guns with push-button operation, the system enables precise, repeatable lines and skip patterns while minimizing operator fatigue. The pressurized EZ Bead System with dual 120 lb bead tanks (240 lb total capacity) ensures consistent bead flow and optimal paint embedment for long-lasting, high-visibility reflective markings.
This model includes the LazerGuide 3000 long-line laser system, providing highly visible guidance for straighter lines over long distances and reducing the need for rework. Powered by a Honda GX390 engine and supported by a high-efficiency hydraulic system, the 250SPS delivers no-stall performance, extended runtime, and maximum productivity—making it the ultimate solution for high-production striping professionals.
- Pressurized EZ Bead System
- Superior Bead Application Performance
- Ensures proper bead flow and paint penetration
- Dual bead tanks hold up to 120 lbs each
- Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
- LazerGuide 3000 Long-Line Lazer
- Easier, laser-straight lines
- Longer distance accuracy
- Highly-visible laser guise
- Faster, simple operation
- Remote Mount Control Box
- Striping Information At-A-Glance
- Simple to use and easy to see in all conditions
- 25-Gallon Paint Hopper
- Less Refilling
- Extended striping time with large capacity hopper
- Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Electric Start
- Fast starting
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- Front or Rear Gun Mount
- Straighter long lines
- Use up to six guns
- Additional Features
- Self-Centering Front Wheel
- Easy Handlebar Adjustment
- Endurance Chromex Pump
- High-Efficiency Hydraulic Motor
- High-Capacity Cooling System
- Easy Out Pump Filter
Machine Specifications
| Specification | Details |
| Brand | Graco |
| Model | LineLazer V 250SPS HP Reflective (Self-Propelled) |
| Part Number | 25D340 |
| Power Source | Gas (Hydraulic Drive) |
| Engine Power | 13 HP |
| Engine | Honda GX390 |
| Maximum Operating Speed | 10 mph |
| Maximum Working Pressure | 3300 PSI |
| Maximum Flow Rate | 9.46 L/Min |
| Maximum Tip Size | 0.055 in |
| Number of Colors | 1 |
| Number of Pumps | 1 |
| Number of Hoppers | 1 |
| Hopper Capacity | 25 Gallons |
| Bead System | Pressurized EZ Bead System |
| Bead Tank Capacity | 240 lb total (2 x 120 lb tanks) |
| Number of Guns | 2 (Automatic) |
| Weight | 776 lbs |
Operational Details
UPC: 755652690528
Country of Origin: United States
Unit of Measure: Each
Included Components
LazerGuide 3000 Long-Line Laser
Pressurized Bead System (2 Tanks)
Flex Plus Spray Guns (2)
RAC 5 321 Spray Tips (2)
RAC 5 425 Spray Tips (2)
RAC 5 627 Spray Tips (2)
RAC 5 Tip Guards (2)
3/8" x 12 ft BlueMax II Hose
3/8" x 3 ft Whip Hose
TSL (4 oz)
Recommended Applications
Highway and roadway striping
Airport and runway striping
Municipal and DOT striping
Large parking lot striping
Long-distance, high-precision striping
Reflective bead striping applications
High-production, continuous-duty projects
Graco Rebate Offer
When you purchase through Spraywell, you are eligible to receive:
- 7 FREE RAC 5 Line Striping Tips
- Graco Endurace Advantage Program
How to Claim Your Free Goods:
This is an online rebate fulfilled by Graco after your order is delivered.
- Wait for your sprayer to arrive (you will need the Serial Number).
- Visit the Graco Redemption Center.
- Upload a copy of your receipt and use Promo Code: NAT26 & EA26
*Fulfillment handled by Graco. Valid on purchases through Dec 31, 2026.
Download the Graco LineLazer Guide for Indoor and Outdoor Professional Line Striping (PDF)
This comprehensive Graco LineLazer Professional Airless Line Striping Systems Guide provides technical specifications and layout solutions for all environments, including high-traffic outdoor parking lots and airports, specialized indoor warehouse and factory flooring, and precision turf marking for athletic fields.
