The Graco 25D344 LineLazer V 250DC HP Reflective Series is the most advanced dual-color reflective line striper in the LineLazer lineup, combining self-propelled operation, three automatic guns, dual bead tank capacity, and laser-guided precision into one high-performance system. Built for the most demanding striping environments, this machine is ideal for airports, highways, municipalities, and large-scale commercial projects requiring complex layouts and maximum productivity.
With three automatic paint guns and push-button striping, operators can produce wider lines, multi-line striping, and intricate dual-color patterns with unmatched efficiency. The pressurized EZ Bead System with dual 120 lb bead tanks (240 lb total capacity) ensures consistent bead flow and optimal paint embedment for durable, high-visibility reflective markings.
The integrated LazerGuide 3000 long-line laser system provides highly visible guidance for straight, accurate lines over long distances, reducing rework and improving overall job quality. Equipped with dual 15-gallon paint hoppers, dual Endurance Chromex pumps, and dual high-efficiency hydraulic motors, the 250DC delivers precise material control and uninterrupted, no-stall performance. Powered by a Honda GX390 engine and a self-propelled drive system, this machine maximizes output while minimizing operator fatigue—making it the ultimate solution for high-production, precision-driven striping contractors.
- Pressurized EZ Bead System
- Superior Bead Application Performance
- Ensures proper bead flow and paint penetration
- Dual bead tanks hold up to 120 lbs each
- Dual High-Efficiency Hydraulic Motors
- Uninterrupted Performance
- No-Stall design
- Dual Endurance Chromex Pumps
- Precise Material Flow
- Consistency with a wide range of striping materials

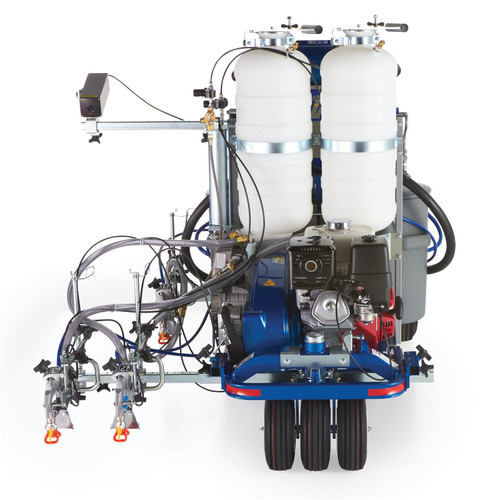

- Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system

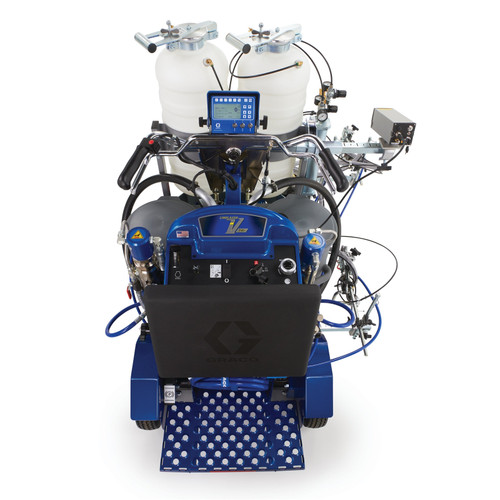

- LazerGuide 3000 Long-Line Lazer
- Easier, laser-straight lines
- Longer distance accuracy
- Highly-visible laser guise
- Faster, simple operation

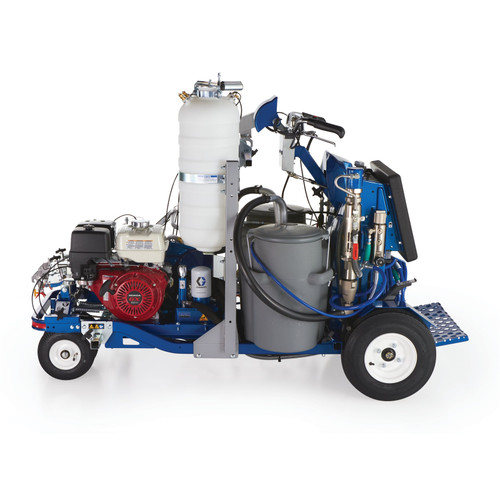

- Remote Mount Control Box
- Striping Information At-A-Glance
- Simple to use and easy to see in all conditions
- Dual 15-Gallon Paint Hoppers
- Less refilling
- Simultaneously spray two colors and refill less often
- Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Electric Start
- Fast starting
- Additional Features
- EasyMark Gun Adjustment System
- Front or Rear Gun Mount
- Self-Centering Front Wheel
- Easy Handlebar Adjustment
- High-Capacity Cooling System
- Easy Out Pump Filter
Machine Specifications
| Specification | Details |
| Brand | Graco |
| Model | LineLazer V 250DC HP Reflective (Self-Propelled) |
| Part Number | 25D344 |
| Power Source | Gas (Hydraulic Drive) |
| Engine Power | 13 HP |
| Engine | Honda GX390 |
| Maximum Operating Speed | 10 mph |
| Maximum Working Pressure | 3300 PSI |
| Maximum Flow Rate | 9.46 L/Min |
| Maximum Tip Size | 0.055 in |
| Number of Colors | 2 |
| Number of Pumps | 2 |
| Number of Hoppers | 2 |
| Hopper Capacity | 30 Gallons (2 x 15-gallon hoppers) |
| Bead System | Pressurized EZ Bead System |
| Bead Tank Capacity | 240 lb total (2 x 120 lb tanks) |
| Number of Guns | 3 (Automatic) |
| Weight | 864 lbs |
Operational Details
UPC: 755652690566
Country of Origin: United States
Unit of Measure: Each
Included Components
LazerGuide 3000 Long-Line Laser
Pressurized Bead System (2 Tanks)
Flex Plus Spray Guns (3)
RAC 5 321 Spray Tips (3)
RAC 5 425 Spray Tips (3)
RAC 5 627 Spray Tips (3)
RAC 5 Tip Guards (3)
3/8" x 12 ft BlueMax II Hoses (2)
3/8" x 3 ft Whip Hoses (2)
TSL (4 oz)
Recommended Applications
Airport striping with reflective markings
Highway and roadway striping
Municipal and DOT projects
Dual-color reflective striping
Wide-line and multi-line striping
Precision long-line striping
High-production striping jobs
Complex striping layouts
