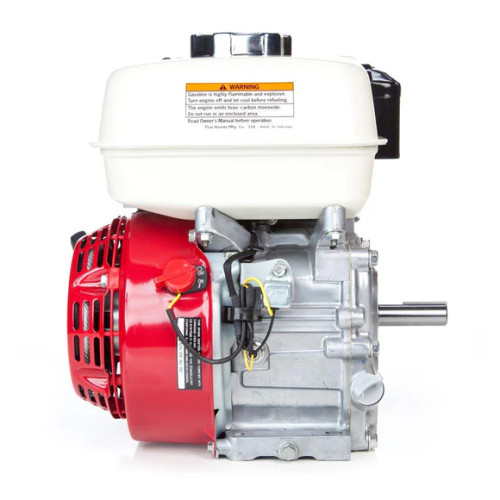

The Honda GX200 is one of the most widely used commercial small engines in the pressure washing, agricultural spraying, pest control, soft washing and industrial equipment industries. Delivering 5.8 HP from Honda’s proven 196cc GX Series platform, this horizontal shaft OHV engine combines fuel efficiency, dependable power, and long-term durability in a compact commercial-grade design.
Built with Honda’s commercial GX engineering, the GX200 features a reliable recoil starting system, cast iron cylinder sleeve, Oil Alert protection, and a dual-element air filtration system designed for demanding work environments.
The GX200 platform is trusted throughout multiple industries for its simple maintenance, smooth operation, and reliable power delivery. Its compact footprint and 3/4" horizontal shaft make it a popular choice for sprayers, pumps, pressure washing systems, agricultural equipment, and custom skid builds.
Honda’s precision-engineered internal components help reduce vibration and improve operating smoothness, while the transistorized magneto ignition system ensures reliable starting and stable performance in the field.
For contractors and equipment builders looking for a lightweight commercial engine with proven Honda reliability, the GX200 remains one of the most trusted small engine platforms available.
Not for sale in California.
Built for Commercial & Industrial Applications
- Truck mount sprayers
- Agricultural sprayers
- Transfer pumps
- Pressure washing equipment
- Industrial pumping systems
- Small generators
- Commercial spraying equipment
- Custom skid builds
What makes the Honda GX200 popular for commercial equipment?
The GX200 is widely trusted for its compact size, fuel efficiency, smooth operation, and dependable long-term reliability across commercial spraying, pumping, and pressure washing applications.
Does the Honda GX200 include electric start?
No. This GX200 configuration utilizes a recoil pull-start system.
What size shaft does the Honda GX200 use?
This engine features a 3/4" diameter horizontal shaft with a 2-7/16" shaft length and 3/16" keyway.
What oil does the Honda GX200 use?
Honda recommends SAE 10W-30 engine oil for general operation across most temperature ranges.
Commercial GX Series Platform:
Built for demanding industrial and commercial applications requiring dependable long-term performance.
5.8 HP OHV Engine Design:
Provides efficient power transfer and reliable operation for sprayers and industrial equipment.
Recoil Pull Start System:
Simple and dependable manual starting system for commercial operation.
196cc Commercial Engine:
Compact and lightweight engine platform trusted across multiple industries.
Transistorized Magneto Ignition:
Provides reliable starting and stable ignition performance.
Dual-Element Air Cleaner:
Helps improve engine protection in dusty and demanding environments.
Oil Alert Protection System:
Automatically helps protect the engine from low-oil operating conditions.
Ball Bearing Supported Crankshaft:
Improves crankshaft stability and long-term durability.
Precision Engineered Components:
Designed to reduce vibration and improve operating smoothness.
Commercial-Grade Fuel System:
Features carburetor protection enhancements to help resist fuel impurities.
| Specification | Details |
| Brand | Honda |
| Model | GX200UT2QX2 |
| Engine Series | GX Series |
| Engine Type | OHV Single Cylinder |
| Displacement | 196cc |
| Net Power Output | 5.8 HP |
| Start Type | Recoil Start |
| Ignition System | Transistorized Magneto |
| Shaft diameter | 3/4" |
| Shaft Length | 2-7/16" |
| Shaft Keyway | 3/16" |
| Shaft Orientation | Horizontal |
| Shaft Rotation | Counter-Clockwise |
| Fuel Type | Unleaded 86 Octane or Higher |
| Fuel Tank Capacity | 3.3 qt |
| Compression Ratio | 8.5:1 |
| Oil Capacity | 0.63 qt |
| Lubrication System | Splash |
| Air Cleaner Type | Dual Element |
| Cylinder Sleeve | Cast Iron |
| Muffler | Standard |
| Weight | 47 lbs |
| Warranty | 3-Year Limited Warranty |
Recommended Applications
- Truck mount spraying systems
- Agricultural sprayers
- Transfer pumps
- Commercial spraying equipment
- Small industrial equipment
- Pressure washing systems
- Custom skid builds
What’s Included
- Honda GX200UT2QX2 Engine
- Recoil starter
- Standard muffler
The Honda GX200UT2QX2 engine is backed by Honda’s 3-Year Limited Warranty for commercial and consumer applications.
As an authorized Honda dealer, Spraywell can assist customers with warranty support, product questions, and warranty service coordination.
For complete warranty terms, exclusions, and coverage details, please refer to Honda’s official warranty documentation or contact Spraywell directly at 561-964-3228.
