Optional Configurations
Comes standard with a 1.3mm Needle/Nozzle Set and “B” HS Air Cap. Needle/nozzle and air cap configurations can be customized by leaving a message at checkout.

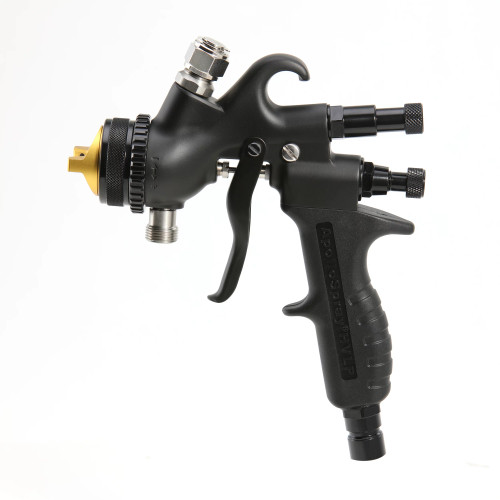

Choose from the following needle/nozzle sizes for the Apollo A7700 spray gun, designed for a wide range of solvent-based and waterborne finishing applications:
- 0.8mm / B-HS Air Cap: Ideal for automotive base coats, clear coats, stains, and ultra-fine finish applications.
- 1.0mm / B or B-HS Air Cap: Recommended for base coats, metallics, lacquers, and fine wood finishing applications.
- 1.3mm / B or B-HS Air Cap: Excellent all-around setup for solvent-based finishes, sealers, clears, and pigmented coatings.
- 1.5mm / B or B-HS Air Cap: Designed for pigmented waterborne finishes, polyurethane coatings, cabinet finishes, and lighter latex materials.
- 1.8mm / C or C-HS Air Cap: Best suited for primers, heavier coatings, and certain latex paint applications.
Compatible Needle/Nozzle & Air Cap Configurations
| Needle/Nozzle Size | Compatible Air Cap Options |
| 1.0mm | B or B-HS |
| 1.3mm | B or B-HS |
| 1.5mm | B or B-HS |
| 1.8mm | C or C-HS |
More Precision & Power
The all NEW and enhanced power and exclusive features of the PRECISION-6 PRO put you in control of one of the most advanced TrueHVLP™ systems available for industries and applications demanding precision HVLP technology and professional finish quality. With a powerful 6-stage motor, the PRECISION-6 PRO is capable of spraying a wide range of coatings including solvent and waterborne materials, clear finishes, pigmented coatings, faux paints, gelcoat, latex (emulsion), and multi-spec coatings. It is also an excellent choice for specialized Italian waterborne coatings.
Included Accessories – Over $159 Value
- Deluxe Spray Gun Case
- Wrench (Spanner)
- Gun Lube
- Deluxe Cleaning Kit
- Viscosity Cup
- Blow Off Tool
Advanced Features
Pressure Control System (PCS™)
Automatically controls motor speed, voltage, and amperage while adjusting for altitude and barometric pressure to maintain precise atomizing pressure and consistent spraying performance.
Unparalleled Power & Efficiency
Delivers 11.5 PSI sealed pressure for exceptional atomization. Documented 80+% transfer efficiency and up to 38% coating savings compared to compressed air systems.
LCD Message Center
Displays hour meter, pressure readings accurate to 1/10th PSI, idle mode status, filter notifications, and temperature warnings.
PowerPause™ Technology
Features a 60-second auto-idle mode designed to help preserve motor life and long-term reliability while maintaining high available flow pressure.
QuadraClean™ Dual Filtration
Dual automotive-style paper filters provide advanced air filtration to help keep the system running cooler and extend motor life.
32′ Apollo-Flex™ Hose
Includes lightweight alloy quick-connect couplers on both ends along with Apollo’s Ultra-Flex™ whip hose at the spray gun connection for improved flexibility and control.
Handi-Hold™ Spray Gun Docking Station
Provides a convenient location to safely store, transport, or hold the spray gun and accessories during use.
| Specification | Details |
| Brand | Apollo |
| Model | PRECISION 6 PRO |
| System Type | TrueHVLP Turbine Spray System |
| Turbine Stages | 6 Stages |
| Maximum Pressure | 11.5 PSI |
| Voltage | 110VAC |
| Frequency | 60HZ |
| Spray Gun Included | Apollo A7700 |
| Standard Needle/Nozzle Size | 1.3mm |
| Standard Air Cap | "B" HS Air Cap |
| Hose Length | 32 Feet |
| Air Filtration | QuadraClean Dual Filtration |
| Weight | 25 lbs |
PLUS Package Includes
- Apollo PRECISION-6 PRO Turbine
- Apollo A7700 Spray Gun
- 1 Qt Bottom Feed Cup
- 32' Apollo-Flex™ Air Hose
- Deluxe Spray Gun Case
- 1.5mm Needle/Nozzle Set
- 1.8mm Needle/Nozzle Set
- CHS Air Cap
- Deluxe Cleaning Kit
- Blow Off Tool
- Gun Lube
- Viscosity Cup
Ideal Applications
- Cabinet finishing
- Furniture finishing
- Woodworking
- Fine finish painting
- Millwork finishing
- Commercial finishing
- Waterborne coating applications
- Automotive specialty coatings
- Industrial finishing applications
