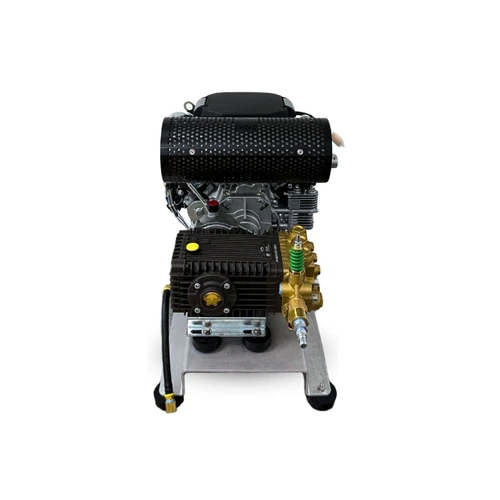

Stealth Operator Series 8 GPM 4000 PSI Gear Drive Pressure Washer Skid – Honda GX690 & General Pump TSF2021

The Stealth Operator Series 8 GPM 4000 PSI Gear Drive Pressure Washer Skid brings one of professional pressure washing's most proven performance configurations into a more compact drivetrain. Delivering 8 GPM at 4000 PSI, this machine is built for pressure washing contractors tackling residential concrete, commercial properties, fleet washing, heavy equipment, drone cleaning, parking areas, and large-scale flatwork.

Powered by a Honda GX690 V-Twin Electric Start Engine and paired with the proven General Pump TSF2021 triplex plunger pump, the system uses a General Pump YGR1125P 2.2:1 gear reducer instead of a conventional belt-and-pulley drive system. The gear reducer lowers pump operating speed while eliminating the belts, pulleys, belt guard, and routine belt tensioning associated with a belt-drive configuration.

The result is full-size 8 GPM / 4000 PSI commercial cleaning performance in a compact 31.5" L × 17.5" W footprint—giving professional rig builders more flexibility when laying out buffer tanks, hose reels, soft wash equipment, and other equipment on a trailer or truck.

Like the rest of the Stealth commercial pressure washer lineup, the SG8035-HG is built on Stealth's purpose-built 6061-T6 structural aluminum skid, featuring integrated vibration isolation, improved service access, corrosion-resistant construction, and laser-cut STEALTH branding.

Every Stealth pressure washer arrives prefilled with oil and includes engine and pump oil drain hoses for simplified routine maintenance.

⚠️ SHIPPING RESTRICTION: Due to state regulations, this equipment is restricted from sale and shipment to California.

What's Included

Engine + Pump Assembly: Honda GX690 V-Twin electric start engine paired with a General Pump TSF2021 triplex plunger pump

General Pump YGR1125P Gear Reducer: Commercial 2.2:1 gear reduction drive with 1-1/8" shaft input for 18–24 HP gas engines

General Pump YU21405 Unloader: Commercial 21 GPM, 4050 PSI rated trapped-pressure unloader for pressure regulation

Premium Stealth 6061-T6 Aluminum Skid: Compact, mount-ready platform for trailers, flatbeds, service trucks, and custom pressure washing rigs

Prefilled with Oil: Engine and pump arrive prefilled for installation

Engine & Pump Oil Drain Hoses: Pre-installed for easier routine maintenance

Introducing the Operator Series: Built to Work. Ready to Lead.

The Operator Series represents the backbone of the Stealth pressure washing lineup. Built around proven commercial components and designed for real-world jobsite conditions, these machines deliver the reliability, serviceability, and performance contractors need from equipment responsible for generating revenue every day.

The SG8035-HG expands the Operator Series with a gear-drive configuration, giving contractors another way to build around the proven 8 GPM platform. Instead of choosing between professional output and a compact machine footprint, the gear-drive system combines the Honda GX690, General Pump TSF2021, and a 2.2:1 General Pump gear reducer on Stealth's commercial aluminum skid.

From residential concrete and commercial property maintenance to fleet washing and heavy equipment cleaning, the Operator Series is built around the equipment configurations professional cleaners depend on.

Operator Series: The Backbone of Professional Cleaning.

Why Choose a Gear Drive Pressure Washer?

8 GPM Performance in a Compact Footprint

Commercial pressure washing rigs have limited real estate. Every inch occupied by the pressure washer competes with buffer tanks, chemical tanks, hose reels, soft wash equipment, fuel storage, and other equipment.

By replacing the conventional belt, pulley, and belt-guard assembly with a compact gear reducer, the SG8035-HG measures just 31.5" long × 17.5" wide × 22" high while still delivering 8 GPM at 4000 PSI.

For trailer, truck, and skid builders, that compact footprint provides greater flexibility when designing the complete wash system.

Eliminate Belt Maintenance

A gear-drive system has no drive belts to tension, inspect, or replace.

Instead, the Honda GX690 transfers power through the General Pump YGR1125P gear reducer to the TSF2021 pump. Routine drivetrain maintenance centers around the gear reducer's lubrication requirements rather than belt condition and tension.

For contractors running equipment every day, that means one less wear component to manage on the pressure washer.

Enclosed Gear Reduction

Traditional belt-drive systems transfer power through an external belt-and-pulley assembly protected by a belt guard. The YGR1125P performs the reduction inside a dedicated gearbox.

This keeps the primary drive mechanism contained within the gear reducer rather than relying on external belts and pulleys, creating a clean and compact drivetrain for professional mobile wash rigs.

Reduced Pump Speed Without the Belt-Drive Footprint

Gear drive should not be confused with conventional direct drive.

A direct-drive pressure washer typically couples the pump directly to the engine. The SG8035-HG instead places a 2.2:1 gear reducer between the Honda GX690 and General Pump TSF2021, reducing the speed transmitted to the pump while maintaining a compact drivetrain.

At a 3,600 RPM engine speed, a 2.2:1 reduction corresponds to approximately 1,636 pump RPM.

That gives contractors another professional reduced-speed drive option without requiring the wider belt-and-pulley assembly of a conventional belt-drive machine.

Frequently Asked Questions

What can an 8 GPM 4000 PSI pressure washer clean?

An 8 GPM 4000 PSI pressure washer is built for high-production professional cleaning, including residential and commercial concrete, driveways, sidewalks, parking areas, commercial properties, fleet washing, heavy equipment, drone cleaning, and large-scale flatwork.

The combination of high water volume and commercial pressure allows contractors to cover more surface area while retaining the pressure required for demanding cleaning applications.

What is a gear drive pressure washer?

A gear drive pressure washer uses a gear reducer between the engine and pump to transfer power and reduce pump operating speed.

The Stealth SG8035-HG uses a General Pump YGR1125P 2.2:1 gear reducer between its Honda GX690 engine and General Pump TSF2021 pump. This provides reduced-speed pump operation without using the belts and pulleys found on a belt-drive pressure washer.

Is gear drive or belt drive better for a commercial pressure washer?

Both are professional reduced-speed drive configurations, and the better choice depends on the contractor's rig and maintenance preferences.

The Stealth 8 GPM belt-drive and gear-drive configurations both pair a Honda GX690 with a General Pump TSF2021 and deliver 8 GPM at 4000 PSI. The existing belt-drive Operator Series uses the traditional belt-and-pulley configuration and is designed around professional trailer and buffer-tank applications.

The gear-drive configuration uses a 2.2:1 General Pump gear reducer, eliminating drive belts and allowing a more compact drivetrain. It is particularly attractive when trailer or truck space and eliminating routine belt maintenance are priorities.

What maintenance does the gear drive require?

The gear drive eliminates routine belt inspection, tension adjustment, and belt replacement. The gear reducer itself still requires proper lubrication and periodic gear-oil maintenance according to its service requirements.

Engine and pump maintenance should also be performed according to their respective service schedules.

Why does the compact footprint matter on a pressure washing rig?

Space on a professional trailer or truck is valuable. A smaller pressure washer footprint can leave more room for equipment such as larger buffer tanks, additional hose reels, soft wash systems, chemical tanks, and other rig components.

The SG8035-HG measures 31.5" L × 17.5" W × 22" H, making compact packaging one of the primary advantages of the gear-drive configuration.

What size surface cleaner can an 8 GPM 4000 PSI pressure washer run?

Most contractors pair an 8 GPM machine with approximately a 28"–36" surface cleaner. Correct surface-cleaner nozzle sizing is important for matching the machine's flow and pressure.

Does this unit include a fuel tank?

No. The SG8035-HG is a commercial skid intended for installation into a trailer, truck, flatbed, or custom pressure washing system. A fuel tank and battery cables are not included.

Does the pressure washer arrive with oil?

Yes. Like the existing Stealth Operator Series belt-drive machine, the engine and pump arrive prefilled with oil and include oil drain hoses to simplify maintenance.

Stealth 8 GPM 4000 PSI Gear Drive Pressure Washer | Features

Honda GX690 V-Twin Engine

Commercial 688cc V-Twin OHV engine with electric start, providing the power required for the 8 GPM / 4000 PSI configuration.

General Pump TSF2021 Triplex Plunger Pump

A proven commercial triplex plunger pump known throughout the professional pressure washing industry for durability, rebuildability, serviceability, and parts availability.

General Pump YGR1125P 2.2:1 Gear Reducer

Commercial gear reducer designed for General Pump 47, 47SS, and 66 Series pumps, with a 2.2:1 reduction ratio and 1-1/8" shaft input for 18–24 HP gasoline engines.

Compact 31.5" × 17.5" Machine Footprint

The gear-drive configuration eliminates the wider belt-drive assembly, allowing the engine, reducer, and pump to fit into a compact commercial package.

Overall assembled dimensions are 31.5" L × 17.5" W × 22" H.

Premium Stealth 6061-T6 Aluminum Skid Platform

Precision-cut structural aluminum provides a strong, lightweight, corrosion-resistant foundation for professional cleaning equipment.

The Stealth platform incorporates a clean equipment layout, integrated vibration isolation, improved service access, and laser-cut STEALTH branding. These are established characteristics of the Operator Series skid platform used on the existing belt-drive system.

No Drive Belts to Maintain

The gear reducer eliminates the drive belts, pulleys, and belt-tensioning maintenance associated with a traditional belt-drive system.

General Pump YU21405 Trapped Pressure Unloader

Commercial trapped-pressure unloader rated for 21 GPM and 4050 PSI, providing pressure regulation for the system.

Engine & Pump Oil Drain Hoses Included

Pre-installed drain hoses make routine engine and pump oil changes easier and cleaner.

Stainless Steel Hardware

Corrosion-resistant hardware supports the Stealth skid's professional mobile-equipment design.

Stealth 8 GPM 4000 PSI Gear Drive Pressure Washer | Specifications

Recommended Applications

• Professional Pressure Washing
• Residential & Commercial Concrete Cleaning
• Large-Scale Surface Cleaning
• Commercial Property Maintenance
• Fleet Washing
• Heavy Equipment Cleaning
• Drone Cleaning
• Parking Areas & Garages
• Trailer-Mounted Pressure Washing Systems
• Truck & Flatbed Wash Rigs
• Compact Multi-System Rig Builds

Warranty

Honda GX690 Engine: 3-Year Warranty

General Pump TSF2021: 5-Year Warranty with Lifetime Forged Brass Manifold Guarantee

For complete warranty information, contact Spraywell at 561-964-3228.
