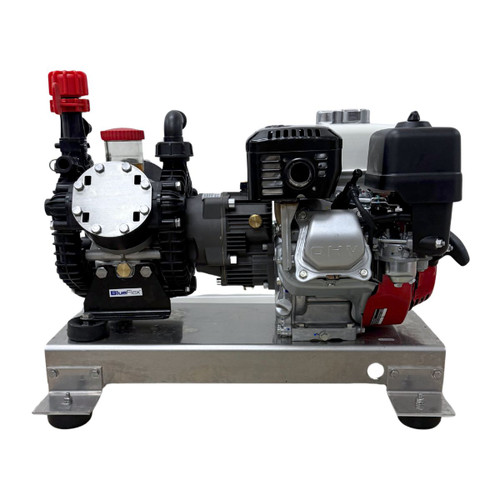

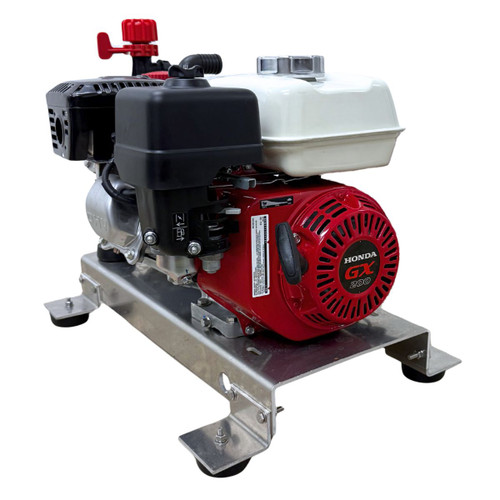

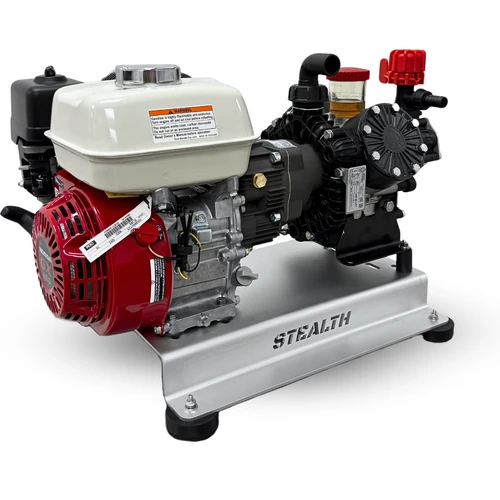

Stealth AR45-SW Soft Wash System w/ Honda GX200 – 11.4 GPM, 290 PSI

The Stealth AR45-SW Soft Wash System combines the new-generation AR45-SW gear-driven diaphragm pump with a commercial Honda GX200 engine and Stealth's purpose-built aluminum skid platform to create a high-output system for professional soft washing and chemical application.

Delivering up to 11.4 GPM at 290 PSI, the AR45-SW provides the solution volume and pressure contractors rely on for roof cleaning, house washing, multi-story exterior cleaning, commercial properties, and other high-production spray applications.

The new AR45-SW replaces the previous AR45LFP-GR-GCI pump and incorporates updates specifically developed around soft wash use. The revised pump uses reinforced head plates and a redesigned outlet manifold assembly that brings the individual pump sections together into a more consolidated, reinforced configuration. The new design also incorporates a straight 3/4" bypass hose barb and retains a threaded 1/2" outlet.

The pump and Honda GX200 are mounted on Stealth's commercial 6061-T6 aluminum skid platform, providing a strong, lightweight, corrosion-resistant foundation with integrated vibration isolation, improved service access, and laser-cut STEALTH branding.

The result is a professional gas-powered soft wash system combining the high-volume characteristics of the AR45 platform with the latest AR45-SW pump architecture and Stealth's standardized commercial equipment platform.

⚠️ SHIPPING RESTRICTION: Due to state regulations, this equipment is restricted from sale and shipment to California.

The New AR45-SW Soft Wash Pump

The AR45-SW is the latest evolution of the AR45 platform for soft wash applications, replacing the previous AR45LFP-GR-GCI used on earlier Stealth AR45 systems.

While the core diaphragm-pump architecture remains familiar, the new AR45-SW introduces several changes to the pump's head and discharge-side construction.

Reinforced Head Design

The new AR45-SW incorporates reinforcing plates around the pump heads, adding structural support to the head assemblies.

The reinforcement is intended to help control movement and flex across the pump heads during operation while retaining the chemical-resistant pump architecture required for soft wash applications.

Redesigned Outlet Manifold

One of the most visible changes is the new outlet manifold assembly.

Rather than the previous ring-style outlet arrangement, the AR45-SW brings the discharge side together through a more consolidated manifold configuration. Stainless steel reinforcement ties the assembly together and provides additional structural support around the discharge side of the pump.

For professional users familiar with previous generations of the AR45, this represents one of the most significant physical changes to the new AR45-SW.

Straight 3/4" Bypass Connection

The AR45-SW now incorporates a straight 3/4" bypass hose barb, replacing the previous angled bypass configuration.

This provides a more direct connection point when incorporating the regulator's bypass circuit into the final soft wash plumbing layout.

1/2" Threaded Outlet

The new pump retains a 1/2" threaded discharge outlet, allowing the final discharge connection to be configured around the requirements of the completed system.

Stealth Commercial Aluminum Stealth Skid

Every Stealth Sprayers machine is now built on a commercial aluminum skid platform. Constructed from precision-cut 6061-T6 structural aluminum, the skid provides exceptional strength while remaining lightweight and corrosion resistant.

Unlike generic mounting rails commonly found on commercial cleaning equipment, the Stealth skid is purpose-built for professional systems, featuring a clean layout, improved service access, integrated vibration isolation, and laser-cut STEALTH branding that gives the AR45-SW a premium, professional appearance on trailers, truck beds, and mobile wash rigs.

The standardized platform also creates a consistent equipment architecture across Stealth's professional pressure washing and soft washing systems.

Why 11.4 GPM Matters for Professional Soft Washing

Soft washing depends on more than pressure. Solution volume is a major contributor to application speed, coverage, and effective reach.

With output up to 11.4 GPM, the Stealth AR45-SW is designed for contractors moving significant amounts of solution across roofs, siding, large homes, commercial buildings, and other exterior surfaces.

Higher flow can help contractors cover more surface area quickly and reduce the amount of repositioning required across larger structures. That makes high-output gas-powered diaphragm systems particularly valuable for contractors whose productivity depends on completing multiple or larger properties efficiently.

Actual output and reach at the applicator depend on the complete system configuration, including proportioner, supply plumbing, hose diameter and length, fittings, nozzle selection, and other components.

Introducing the Stealth Soft Flow Series

The Stealth Soft Flow Series is Stealth's professional line of high-volume chemical application equipment built for soft washing and other spray-intensive applications. Soft Flow systems are designed around the demands of moving chemical efficiently, maintaining consistent solution delivery, and supporting the long spray runs and demanding workflows encountered by professional operators.

Rather than adapting conventional pressure washing equipment to chemical application, Soft Flow systems are built around spray-specific pump platforms and chemical-handling requirements. The series includes configurations for professional soft washing, exterior cleaning, property treatment, pest control, lawn care, and agricultural spraying, with each system matched to the flow, pressure, and chemical-delivery requirements of its intended application.

The Stealth AR45-SW represents the high-output gas-powered side of the Soft Flow Series. Its 11.4 GPM AR45-SW diaphragm pump, Honda GX200 engine, gear-driven configuration, and commercial aluminum Stealth skid provide a purpose-built platform for contractors who depend on high-volume chemical application every day

Frequently Asked Questions

What is the AR45-SW?

The AR45-SW is the new soft wash version of the AR45 gear-driven diaphragm pump and replaces the previous AR45LFP-GR-GCI used on earlier Stealth AR45 systems.

The updated design incorporates reinforced pump-head construction, a redesigned outlet manifold assembly, and an updated straight bypass connection while retaining the high-flow characteristics that make the AR45 platform popular for professional soft washing.

Does the AR45-SW replace the AR45LFP-GR-GCI?

Yes. The AR45-SW replaces the previous AR45LFP-GR-GCI on the Stealth AR45 Soft Wash System.

This means new SSW-AR45-H systems are built around the updated AR45-SW pump rather than the previous pump configuration.

How much flow and pressure does the Stealth AR45-SW produce?

The system is rated for up to 11.4 GPM at 290 PSI, providing the high solution volume used for professional roof cleaning, house washing, commercial exterior cleaning, and other high-production chemical application work.

What changed on the new AR45-SW?

The new AR45-SW introduces several changes from the previous AR45 configuration, including reinforced pump-head plates, a redesigned and reinforced outlet manifold assembly, and a straight 3/4" bypass hose barb.

These changes update the physical construction of the AR45 for its dedicated soft wash configuration.

Does the AR45-SW include a pressure gauge?

No. A pressure gauge is not included with the AR45-SW pump. The new outlet/regulator assembly includes a gauge port that can accept a compatible pressure gauge if one is desired.

What size is the AR45-SW outlet?

The AR45-SW uses a 1/2" threaded discharge outlet.

Because the outlet is threaded, the final hose-barb or discharge fitting can be selected according to the plumbing requirements of the completed soft wash system.

What size is the AR45-SW bypass connection?

The updated AR45-SW uses a straight 3/4" bypass hose barb.

The regulator's bypass circuit must be properly incorporated into the final plumbing configuration of the completed soft wash rig.

What size proportioner should I use with an AR45-SW?

The AR45-SW is a high-flow pump, so the proportioner and suction-side plumbing should be sized to support its solution requirements.

For a Stealth system, the Stealth SP-1 1" Soft Wash Proportioner is designed for 8+ GPM applications and provides 1" water and SH circuits, a 1" mixed-solution outlet, individual check valves, and a clear manifold for high-flow soft wash systems such as the AR45-SW.

Can the AR45-SW be used with sodium hypochlorite?

The AR45 platform is intended for professional soft wash and chemical-application systems, and its fluid-side construction is designed around the chemical-handling requirements of these applications.

As with any soft wash pump, proper flushing, chemical handling, maintenance, and storage practices remain important to component life.

What engine powers the Stealth AR45-SW?

The system uses a Honda GX200 commercial OHV engine with pull start, providing a proven gas-powered platform for the gear-driven AR45-SW pump.

What is the difference between an AR45-SW system and a 12V soft wash system?

The Stealth AR45-SW is a gas-powered, gear-driven diaphragm system capable of up to 11.4 GPM at 290 PSI. It is intended for contractors seeking substantially higher flow and a different duty platform than typical electric 12V soft wash pumps.

It does not depend on a dedicated 12V pump power supply, but it does require proper gas-engine operation, bypass plumbing, proportioning, and system installation.

Is the Stealth AR45-SW good for roof and house washing?

Yes. Its combination of 11.4 GPM flow, 290 PSI maximum pressure, chemical-capable diaphragm-pump architecture, and gas-powered operation makes it well suited for professional roof cleaning, house washing, multi-story exterior cleaning, and commercial soft wash applications.

New AR45-SW Soft Wash Pump

Updated AR45 configuration replaces the previous AR45LFP-GR-GCI and incorporates design changes specifically developed around soft wash use.

11.4 GPM High-Flow Performance

Moves up to 11.4 gallons per minute for fast chemical application, greater coverage, and professional high-production cleaning.

290 PSI Maximum Pressure

Provides the pressure capability required for high-volume chemical application and soft wash work while remaining within the operating range of a professional diaphragm system.

Reinforced Pump-Head Construction

Structural reinforcement around the AR45-SW pump heads provides additional support to the individual head assemblies.

Redesigned Outlet Manifold

Updated discharge-side architecture consolidates the outlet assembly and incorporates stainless reinforcement around the manifold.

Straight 3/4" Bypass Barb

Updated straight bypass connection provides a direct connection point for final bypass plumbing.

1/2" Threaded Discharge Outlet

Allows the final discharge fitting to be configured around the requirements of the completed soft wash system.

Honda GX200 Commercial Engine

Proven commercial OHV engine provides reliable gas-powered operation with simple pull-start functionality.

Gear-Driven Pump System

Gearbox couples the Honda GX200 to the AR45-SW and provides the drive configuration required by the diaphragm pump.

6061-T6 Commercial Aluminum Stealth Skid

Precision-cut structural aluminum provides a strong, lightweight, corrosion-resistant equipment platform.

Integrated Vibration Isolation

Stealth's skid platform incorporates vibration isolation between the equipment platform and mounting surface.

Improved Service Access

Purpose-built equipment layout provides access to major engine and pump components for routine inspection and service.

Laser-Cut STEALTH Branding

Integrated branding gives the completed system a clean, professional appearance on commercial trailers, trucks, and equipment builds.

Required Field Plumbing & Installation

The Stealth AR45-SW provides the engine, pump, gear-drive assembly, regulator, and commercial skid platform while allowing contractors to configure the remaining plumbing around their trailer, truck, tank, or custom rig layout.

Suction Plumbing

The AR45-SW requires properly sized, reinforced suction plumbing capable of supplying the pump's high flow requirements. All suction-side connections should remain airtight, as leaks can introduce air into the system and interfere with consistent pump supply.

Proportioner

When chemical proportioning is required, the proportioner and surrounding plumbing should be appropriately sized for an 11+ GPM system.

The Stealth SP-1 1" Soft Wash Proportioner is designed for 8+ GPM high-flow systems and is an appropriate Stealth proportioning platform for the AR45-SW.

Bypass / Return Plumbing

The AR45-SW regulator includes a 3/4" straight bypass connection that must be properly incorporated into the final system plumbing.

Bypass routing will depend on the tank and plumbing configuration of the completed soft wash rig.

Discharge Plumbing

The AR45-SW uses a 1/2" threaded discharge outlet, allowing the installer to select an appropriate discharge fitting based on the final hose, reel, and equipment configuration.

Recommended Applications

• Professional Soft Washing
• Roof Cleaning
• House Washing
• Multi-Story Exterior Cleaning
• Commercial Building Washing
• Apartment & Multi-Family Cleaning
• Property & Facility Maintenance
• High-Production Residential Cleaning
• Soft Wash Trailers
• Truck & Flatbed Builds
• Custom Soft Wash Skids
• Pest Control & Chemical Application*
• Lawn & Agricultural Spraying*

*Application and chemical compatibility should be confirmed for the specific chemical being used.
