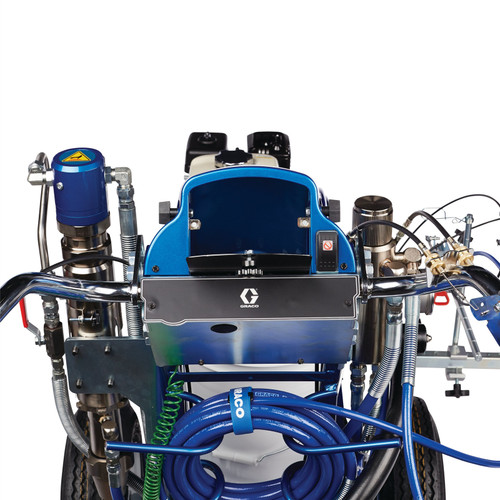

The Graco 17H448 LineLazer 130HS is a hydraulic airless line striper built for contractors who need consistent, high-output striping performance with increased durability and reduced downtime. Powered by a Honda GX120 engine and a high-efficiency hydraulic drive system, this unit delivers smooth, no-stall operation for daily striping applications.
Designed for medium to high-production work, the 130HS features dual manual guns for increased coverage and flexibility, allowing operators to handle standard lines, wider striping, and basic skip-line applications. The hydraulic system reduces wear compared to direct-drive units, improves cooling, and extends component life under continuous use.
With Graco’s Endurance Chromex pump, EasyMark gun adjustment system, and EZ Align wheel system, this machine ensures consistent line quality, accurate tracking, and long-term reliability.
This unit is ideal for contractors handling parking lots, commercial properties, municipal work, and higher-volume striping jobs where durability and productivity are critical.
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- DualComfort Handlebar System
- Easy Handlebar Adjustment
- QuikSelect Gun Selector
- Simple Gun Control
- Independently control of two guns with one lever — solid/skip
- Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
- High-Efficiency Hydraulic Motor
- Uninterrupted Performance
- No-Stall design
- High-Capacity Cooling System
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
- No special hydraulic fluid needed
- Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
- Storage Compartment
- New compartment for tips, guards and miscellaneous items
Machine Specifications
| Specification | Details |
| Brand | Graco |
| Model | LineLazer 130HS Standard Series |
| Part Number | 17H448 |
| Power Source | Gas (Hydraulic Drive) |
| Engine Power | 4 HP |
| Engine | Honda GX120 |
| Maximum Working Pressure | 3300 PSI |
| Maximum Flow Rate | 4.9 L/Min |
| Maximum Tip Size | 0.029 in |
| Number of Guns | 2 (Manual) |
| Recommended Annual Usage | Up to 500 gallons per week |
| Weight | 262 lbs |
Operational Details
Country of Origin: United States
Unit of Measure: Each
UPC: 755652319955
Included Components
Flex Plus Spray Guns (2)
RAC 5 319 Spray Tips (2)
RAC 5 421 Spray Tips (2)
RAC 5 Tip Guards (2)
3/8" x 22 ft BlueMax II Hose
3/8" x 3 ft Whip Hose
TSL (4 oz)
Recommended Applications
Parking lot striping
Commercial property striping
Municipal striping work
Seal coating striping
Medium to high production striping jobs
Graco Rebate Offer
When you purchase through Spraywell, you are eligible to receive:
- 3 FREE RAC 5 Line Striping Tips
- Graco Endurace Advantage Program
How to Claim Your Free Goods:
This is an online rebate fulfilled by Graco after your order is delivered.
- Wait for your sprayer to arrive (you will need the Serial Number).
- Visit the Graco Redemption Center.
- Upload a copy of your receipt and use Promo Code: NAT26 & EA26
*Fulfillment handled by Graco. Valid on purchases through Dec 31, 2026.
Download the Graco LineLazer Guide for Indoor and Outdoor Professional Line Striping (PDF)
This comprehensive Graco LineLazer Professional Airless Line Striping Systems Guide provides technical specifications and layout solutions for all environments, including high-traffic outdoor parking lots and airports, specialized indoor warehouse and factory flooring, and precision turf marking for athletic fields.
