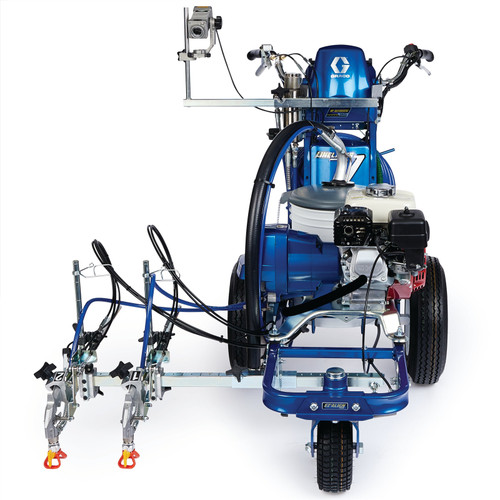

The Graco 17U803 LineLazer V 5900 HP Automatic Series is a high-production gas airless line striper built for contractors who demand maximum efficiency, full automation, and precision layout capability. Equipped with dual automatic guns and the LazerGuide 2000 system, this unit delivers push-button striping and laser-guided layout for faster, more accurate job completion with minimal operator effort.
Powered by a Honda GX160 engine and delivering higher flow output than the 3900 series, the 5900 HP Automatic is designed for large-scale striping applications including parking lots, commercial properties, and municipal projects. The Auto-Layout II system further streamlines workflow by automatically measuring and pre-marking lines while you walk, eliminating traditional layout tools.
Combined with SmartControl, LiveLook display, and the J-Log system, this unit ensures consistent spraying pressure, real-time job tracking, and proof-of-work documentation—making it the ultimate solution for contractors scaling high-volume striping operations.
- Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
- Auto-Layout II
- Simplify Parking Lot Layout
- SmartControl measures while you walk and puts down pre-marks
- No need for measuring tape, string lines or aerosol cans
- Cuts your layout time in half
- LazerGuide 2000 Laser-Guided Layout System
- Improve productivity with less set-up time for higher profits
- Easy, one-person laser-quality line production
- Eliminate the need for tape measures, string or chalk
- LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- J-Log System with USB Download
- Valuable Job Information
- Proof of job = More striping opportunities.
- USB download capability allows you to capture and save all job data
- Honda GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- DualComfort Handlebar System
- Easy Handlebar Adjustment
- Additional Features
- Endurance Chromex Pump
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
Machine Specifications
| Specification | Details |
| Brand | Graco |
| Model | LineLazer V 5900 HP Automatic Series |
| Part Number | 17U803 |
| Power Source | Gas |
| Engine Power | 5.5 HP |
| Engine | Honda GX160 |
| Maximum Working Pressure | 3300 PSI |
| Maximum Flow Rate | 6.06 L/Min |
| Maximum Tip Size | 0.043 in |
| Number of Guns | 2 (Automatic) |
| Weight | 266 lbs |
Operational Details
UPC: 755652696322
Country of Origin: United States
Unit of Measure: Each
Bead System: Optional
Included Components
LazerGuide 2000 Laser Layout System
LazerGuide 1700 Start/Stop Laser
Flex Plus Spray Guns (2)
RAC 5 319 Spray Tips (2)
RAC 5 421 Spray Tips (2)
RAC 5 Tip Guards (2)
3/8" x 50 ft BlueMax II Hose
3/8" x 3 ft Whip Hose
TSL (4 oz)
Recommended Applications
Parking lot striping
Commercial re-striping
Municipal striping projects
Large-scale striping jobs
High-production contractor work
Layout-intensive striping applications
Graco Rebate Offer
When you purchase through Spraywell, you are eligible to receive:
- 7 FREE RAC 5 Line Striping Tips
- Graco Endurace Advantage Program
How to Claim Your Free Goods:
This is an online rebate fulfilled by Graco after your order is delivered.
- Wait for your sprayer to arrive (you will need the Serial Number).
- Visit the Graco Redemption Center.
- Upload a copy of your receipt and use Promo Code: NAT26 & EA26
*Fulfillment handled by Graco. Valid on purchases through Dec 31, 2026.
Download the Graco LineLazer Guide for Indoor and Outdoor Professional Line Striping (PDF)
This comprehensive Graco LineLazer Professional Airless Line Striping Systems Guide provides technical specifications and layout solutions for all environments, including high-traffic outdoor parking lots and airports, specialized indoor warehouse and factory flooring, and precision turf marking for athletic fields.
