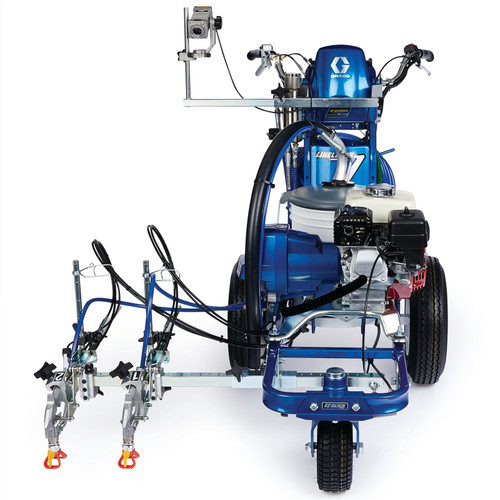

The Graco 17U805 LineLazer V 3900 HP Automatic Series is a gas-powered airless line striper designed for contractors performing parking lot striping, layout work, and skip-line applications. Equipped with a dual automatic gun system, this unit enables push-button striping and consistent line production while reducing operator fatigue.
Built with SmartControl technology and the Auto-Layout II system, this striper allows contractors to measure, mark, and stripe without tape measures, string lines, or aerosol marking tools. The integrated LazerGuide 2000 system provides laser-guided alignment for fast, accurate, one-person operation.
The HP Automatic Series enhances productivity with real-time job tracking through the J-Log system, allowing contractors to capture proof-of-job data and improve workflow efficiency.
- Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
- Auto-Layout II
- Simplify Parking Lot Layout
- SmartControl measures while you walk and puts down pre-marks
- No need for measuring tape, string lines or aerosol cans
- Cuts your layout time in half
- LazerGuide 2000 Laser-Guided Layout System
- Improve productivity with less set-up time for higher profits
- Easy, one-person laser-quality line production
- Eliminate the need for tape measures, string or chalk
- LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- J-Log System with USB Download
- Valuable Job Information
- Proof of job = More striping opportunities.
- USB download capability allows you to capture and save all job data
- Honda GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- DualComfort Handlebar System
- Easy Handlebar Adjustment
- Additional Features
- Endurance Chromex Pump
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
Machine Specifications
| Specification | Details |
| Brand | Graco |
| Model | LineLazer V 3900 HP Automatic Series |
| Part Number | 17U805 |
| Engine Brand | Honda |
| Engine Model | GX120 |
| Power Output | 4 HP |
| Fuel Tank Capacity | 0.66 Gallons (2.5 L) |
| Maximum Working Pressure | 3300 PSI |
| Maximum Flow Rate | 4.73 L/min |
| Maximum Tip Size | 0.036 inches |
| Number of Guns | 2 |
| Number of Pumps | 1 |
| Number of Colors | 1 |
| Weight | 240 lbs |
Included Equipment
LazerGuide Systems: LazerGuide 2000 and LazerGuide 1700
Spray Guns: 2 × Flex Plus Guns
Spray Tips: 2 × RAC 5 319 and 2 × RAC 5 421
Tip Guards: 2 × RAC 5 Tip Guards
Hose: 3/8" x 50 ft BlueMax II Airless Hose
Whip Hose: 3/8" x 3 ft BlueMax II Airless Whip Hose
Lubricant: TSL, 4 oz
Operational Details
Bead System: Optional
Country of Origin: United States
Unit of Measure: Each
UPC: 755652696308
Recommended Applications
Parking lot striping
Road and pavement striping
Warehouse floor marking
Commercial layout work
Industrial facility striping
Graco Rebate Offer
When you purchase through Spraywell, you are eligible to receive:
- 7 FREE RAC 5 Line Striping Tips
- Graco Endurace Advantage Program
How to Claim Your Free Goods:
This is an online rebate fulfilled by Graco after your order is delivered.
- Wait for your sprayer to arrive (you will need the Serial Number).
- Visit the Graco Redemption Center.
- Upload a copy of your receipt and use Promo Code: NAT26 & EA26
*Fulfillment handled by Graco. Valid on purchases through Dec 31, 2026.
Download the Graco LineLazer Guide for Indoor and Outdoor Professional Line Striping (PDF)
This comprehensive Graco LineLazer Professional Airless Line Striping Systems Guide provides technical specifications and layout solutions for all environments, including high-traffic outdoor parking lots and airports, specialized indoor warehouse and factory flooring, and precision turf marking for athletic fields.
