Remco RollMax R660C 6-Roller Pump - Cast Iron, CCW, 5/8" Shaft, 19.6 GPM

The Remco RollMax R660C is a high-volume professional-grade 6-roller pump engineered for demanding agricultural spraying, liquid transfer, and PTO-driven chemical application systems. Delivering up to 19.6 GPM and 150 PSI, the R660C is designed for operators requiring increased flow capacity, reliable field performance, and simple serviceability in demanding spraying environments.

Built with a rugged cast iron body, the R660C is designed for high-volume agricultural spraying applications where durability and throughput are critical. Its 6-roller design delivers significantly higher flow capacity than smaller 4-roller pump configurations, making it well suited for larger acreage coverage and higher-demand spray systems.

One of the key advantages of the RollMax platform is its Rebuild Ready design. The R660C can typically be serviced directly in the field using only basic hand tools without disconnecting plumbing or removing the pump from the drive shaft. This helps reduce downtime and simplify maintenance during peak spraying season.

The R660C utilizes a counter-clockwise (CCW) rotation configuration with a 5/8" shaft designed for PTO-driven spraying systems. Standard 3/4" FNPT ports allow easy integration into agricultural and industrial spray equipment.

For operators running high-volume PTO spraying systems, the Remco RollMax R660C delivers dependable commercial-duty performance with straightforward field serviceability.

Made in the USA.

Built for Commercial Spraying Applications

• Agricultural sprayers
• PTO-driven spray systems
• Fertilizer application rigs
• Herbicide spraying systems
• Field spraying equipment
• Chemical transfer systems
• High-volume liquid application rigs
• Industrial spraying equipment
• Large-acreage spraying applications
• PTO-mounted spray trailers

What makes the R660C different from the R440 series?

The R660C utilizes a 6-roller design capable of producing up to 19.6 GPM, providing substantially higher flow output than the smaller 4-roller R440 models.

What does “Rebuild Ready” mean?

The RollMax Rebuild Ready design allows common wear components to be serviced directly in the field using basic hand tools without disconnecting plumbing or removing the pump from the drive shaft.

What direction does the R660C rotate?

The R660C is configured for counter-clockwise (CCW) rotation only.

Is the R660C designed for PTO operation?

Yes. The R660C is designed primarily for PTO-driven spraying applications and is compatible with the RMC585410 PTO coupler.

6-Roller High-Volume Design:
Provides increased flow output and smoother fluid transfer compared to smaller roller pump configurations.

19.6 GPM Maximum Flow:
Designed for high-demand spraying and liquid transfer applications.

Rebuild Ready Design:
Field-serviceable design allows maintenance without disconnecting plumbing or removing the pump.

Cast Iron Construction:
Heavy-duty cast iron housing designed for commercial agricultural applications.

150 PSI Maximum Pressure:
Handles demanding spray pressure requirements with reliable performance.

Counter-Clockwise Rotation (CCW):
Configured specifically for PTO-driven spray systems.

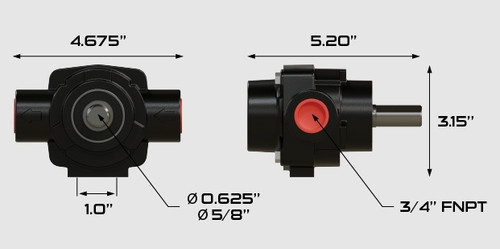

5/8" Shaft Configuration:
Compatible with RollMax PTO couplers and mounting accessories.

3/4" FNPT Ports:
Allows straightforward plumbing integration into spraying systems.

R660RK Repair Kit Compatibility:
Supports fast field rebuilding and maintenance.

Compatible with PTO Stabilization Accessories:
Works with the RMTAC Torque Arm & Chain Kit for PTO-mounted installations.

Compatible Accessories & Repair Parts

Repair Kit

• R660RK — Universal Repair Kit

PTO Coupler

• RMC585410 — Multi-Speed PTO Coupler

PTO Stabilization

• RMTAC — Torque Bar & Chain Kit

Complete PTO Kit

• R660C-TAK — Complete PTO Pump Package

Rebuild Ready — Typical Service Procedure

• Remove endplate cap bolts
• Slide endplate off carefully
• Inspect and replace worn rollers
• Lubricate shaft seal before reassembly
• Reinstall endplate and hardware

Important Operating Notes

• Verify PTO rotation direction before installation
• Never run the pump dry
• Avoid abrasive or contaminated liquids
• Use a bypass or relief valve when appropriate
• Use PTO stabilization hardware during operation

Rotation Direction Warning

The R660C is configured for counter-clockwise (CCW) rotation only.

Operating the pump in the incorrect rotation direction may result in poor performance and accelerated wear.

Performance Chart

Warranty Information

The Remco RollMax R660C Roller Pump is backed by the manufacturer’s warranty coverage.

For product support, compatibility assistance, or setup questions, contact Spraywell at 561-964-3228.
