Remco RollMax R880C 8-Roller Pump - Cast Iron, CCW, 15/16" Shaft, 24.5 GPM

The Remco RollMax R880C is the highest-output cast iron pump in the RollMax Series, engineered for maximum-volume agricultural spraying, liquid transfer, and PTO-driven field spraying systems. Delivering up to 24.5 GPM and 150 PSI, the R880C is built for operators running large-acreage spray rigs where maximum flow capacity and dependable field performance are critical.

Featuring an 8-roller design, the R880C delivers the highest flow output in the RollMax lineup while maintaining smooth fluid transfer and consistent spray performance. Its rugged cast iron body is designed for demanding agricultural environments handling water and lower-corrosive liquid applications.

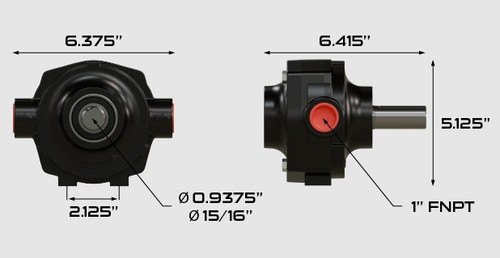

The R880C utilizes a larger 15/16" shaft and oversized 1" FNPT ports to support the increased flow demands of high-volume PTO spraying systems. This makes the R880C ideal for large agricultural spray rigs, liquid transfer systems, and high-output field spraying operations.

Like all RollMax pumps, the R880C features Remco’s Rebuild Ready platform, allowing common wear components to be serviced directly in the field using only basic hand tools without disconnecting plumbing or removing the pump from the drive shaft. This helps minimize downtime during peak spraying season.

For operators needing maximum-volume PTO spraying performance with straightforward field serviceability, the Remco RollMax R880C delivers commercial-duty performance built for demanding agricultural applications.

Made in the USA.

Built for Commercial Spraying Applications

• Large-acreage agricultural spraying
• PTO-driven spray systems
• Fertilizer application rigs
• Herbicide spraying systems
• High-volume field spraying
• Industrial liquid transfer systems
• Chemical application equipment
• PTO-mounted spray trailers
• Commercial spraying operations
• High-capacity agricultural spray rigs

What makes the R880C different from the R660 series?

The R880C utilizes a larger 8-roller design capable of producing up to 24.5 GPM, making it the highest-output pump in the RollMax Series.

What does “Rebuild Ready” mean?

The RollMax Rebuild Ready platform allows common wear components like rollers and seals to be serviced directly in the field using basic hand tools without disconnecting plumbing or removing the pump.

What direction does the R880C rotate?

The R880C is configured for counter-clockwise (CCW) rotation only.

Why does the R880C use a larger shaft and port size?

The larger 15/16" shaft and 1" FNPT ports help support the increased torque and flow demands of maximum-volume PTO spraying systems.

8-Roller Maximum-Volume Design:
Delivers the highest flow output and smoothest fluid transfer in the RollMax lineup.

24.5 GPM Maximum Flow:
Designed for high-capacity agricultural spraying and liquid transfer applications.

Rebuild Ready Design:
Field-serviceable platform allows maintenance without disconnecting plumbing or removing the pump.

Cast Iron Construction:
Heavy-duty cast iron housing built for demanding agricultural field conditions.

150 PSI Maximum Pressure:
Handles high-volume spraying requirements with dependable performance.

Counter-Clockwise Rotation (CCW):
Configured specifically for PTO-driven spraying systems.

15/16" Shaft Configuration:
Designed for heavy-duty PTO-driven agricultural applications.

1" FNPT Ports:
Oversized ports support higher-volume plumbing systems and flow requirements.

R880RK Repair Kit Compatibility:
Supports fast field rebuilding and maintenance.

Compatible with PTO Stabilization Accessories:
Works with the RMTAC Torque Arm & Chain Kit for PTO-mounted installations.

Performance Chart — Flow Rate (GPM)
